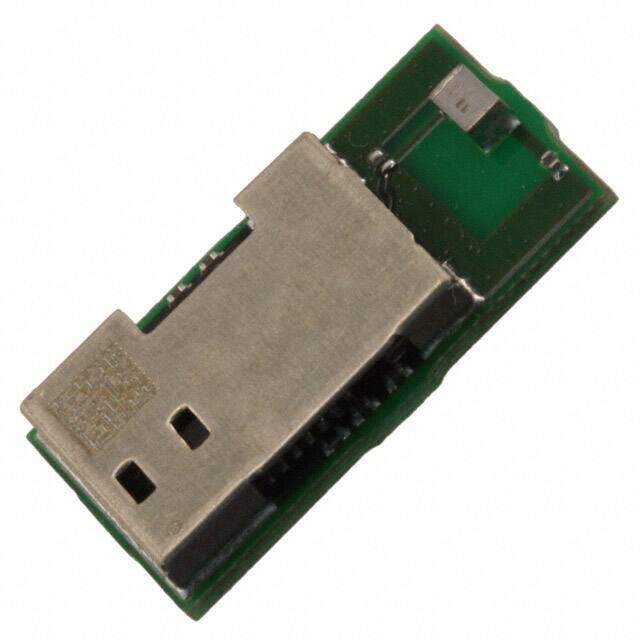

ENW-89820A3KF
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
Bluetooth Class II 3.3V 1Mbps T/R
PDF
/
Buying Options
Total Price: USD $181.38
Unit Price: USD $181.38114
≥1 USD $181.38114
≥10 USD $171.11428
≥100 USD $161.42857
Inventory: 363
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Published 2012
Series PAN1720
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
HTS Code 8542.39.00.01
Voltage - Supply 2V~3.6V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-N
Interface SPI, UART, USB
Memory Size 256kB Flash 8kB RAM
Data Rate 1Mbps
Utilized IC / Part CC2540
Protocol Bluetooth v4.0
Telecom IC Type TELECOM CIRCUIT
Power - Output 4dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Chip
Serial Interfaces SPI, UART, USB
Current - Receiving 37mA
Current - Transmitting 40mA
Sensitivity (dBm) -96 dBm
Dimensions
Height 3mm
Length 14.5mm
Width 8.2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
