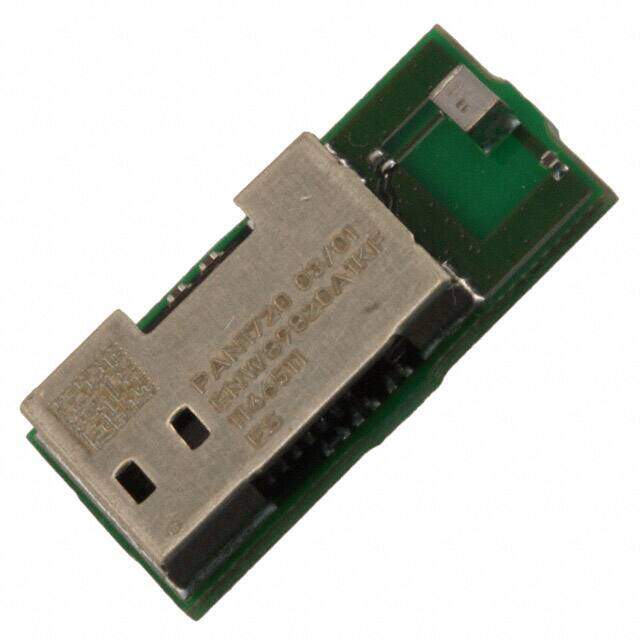

ENW-89820A1KF
RoHS
RoHS compliant
RoHS compliantPackage PCB Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Buying Options
Total Price: USD $6.16
Unit Price: USD $6.162753
≥1 USD $6.162753
≥200 USD $2.385539
≥500 USD $2.301514
≥1000 USD $2.259501
Inventory: 8883
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 8.2mm
Length 14.5mm
Height 3mm
Technical
Sensitivity (dBm) -93 dBm
Current - Transmitting 18.2mA
Current - Receiving 18mA
Serial Interfaces SPI, UART, USB
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 4dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.0
Utilized IC / Part CC2540
Data Rate 10kbps
Memory Size 256kB Flash 8kB RAM
Interface SPI, UART, USB
JESD-30 Code R-XXMA-N
Frequency 2.4GHz
Supply Voltage 3.3V
Number of Functions 1
Terminal Position UNSPECIFIED
Voltage - Supply 2V~3.6V
HTS Code 8542.39.00.01
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series PAN1720
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case PCB Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
