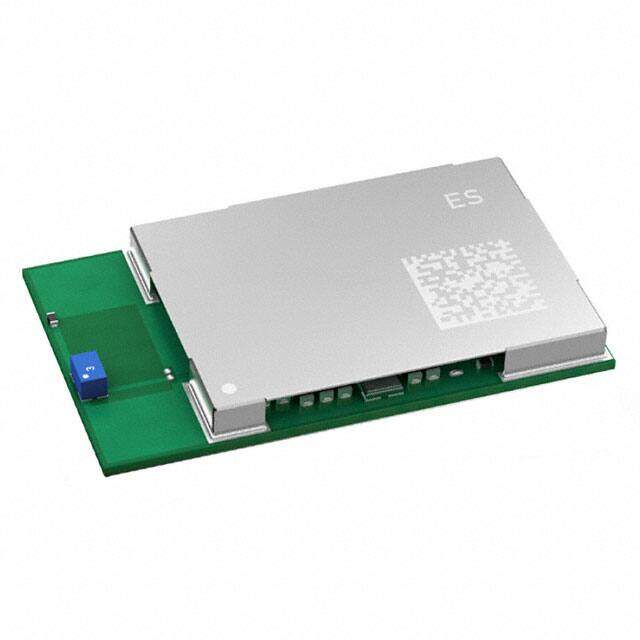

ENW-49801A1JF
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE WIFI CHIP ANT
PDF
/
Inventory: 6510
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Series PAN9020
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Voltage - Supply 3V~3.6V
Frequency 2.4GHz
Interface SDIO, UART, USB
Data Rate 150Mbps
Utilized IC / Part 88W8782
Protocol 802.11b/g/n
Power - Output 18dBm
RF Family/Standard WiFi
Antenna Type Integrated, Chip
Sensitivity -98dBm
Serial Interfaces JTAG, SDIO, UART, USB
Current - Receiving 65mA~115mA
Current - Transmitting 315mA~430mA
Modulation CCK, DSSS, OFDM
Sensitivity (dBm) -98 dBm
Compliance
RoHS Status ROHS3 Compliant
