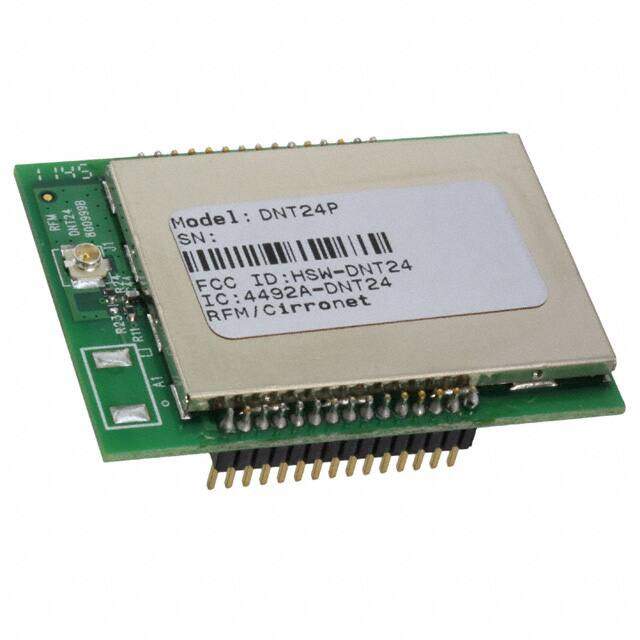

DNT24P
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE ISM>1GHZ U.FL ANT
PDF
/
Inventory: 5244
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Module
Number of Pins 30
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 3.3V~5.5V
Frequency 2.4GHz
Operating Supply Voltage 5.5V
Interface SPI, Serial, UART
Data Rate 500kbps
Power - Output 18dBm
RF Family/Standard General ISM > 1GHZ
Antenna Type Antenna Not Included, U.FL
Sensitivity -100dBm
Serial Interfaces SPI, UART
Current - Receiving 15mA~55mA
Current - Transmitting 140mA Max
Modulation FHSS, FSK
Sensitivity (dBm) -100 dBm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
