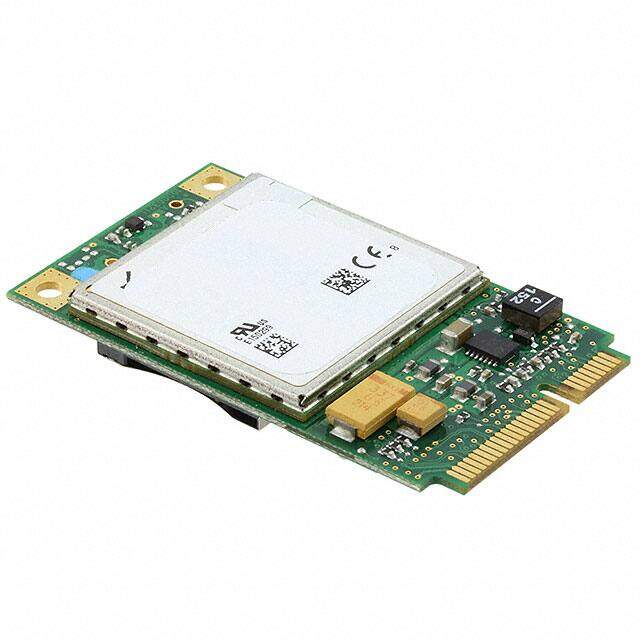

MTPCIE-H5-V-BW-EU-SP
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
PCIe Mini Card Communication Modules
PDF
/
Inventory: 6068
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Sensitivity (dBm) -92 dBm
Current - Transmitting 970mA
Current - Receiving 970mA
Serial Interfaces SDIO, UART, USB
Sensitivity -92dBm
Antenna Type Antenna Not Included, U.FL
RF Family/Standard Bluetooth, Cellular, GPS, WiFi
Power - Output 20dBm
Protocol 802.11b/g/n, Bluetooth v4.0, HSPA+, GPS
Operating Supply Current 970mA
Interface SDIO, UART, USB
Operating Supply Voltage 3.3V
Frequency 850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz 2.4GHz
Voltage - Supply 3.3V
Min Operating Temperature -30°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series MultiConnect?
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Package / Case Module
Mounting Type Card Edge
Mount Edge
