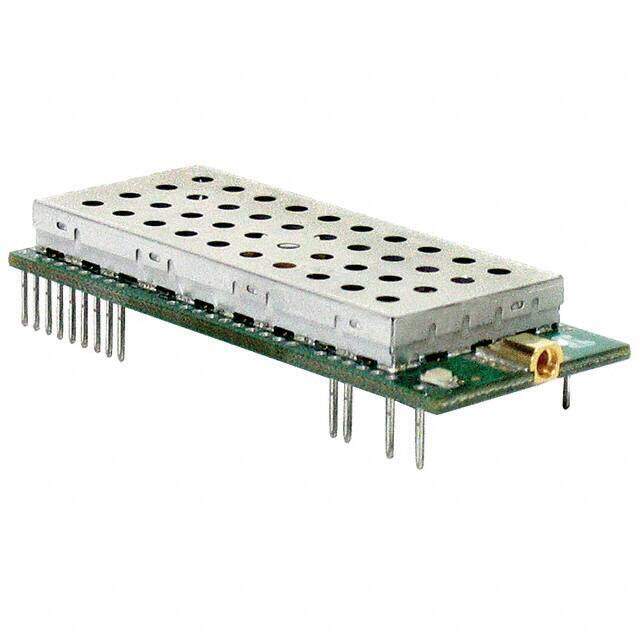

MT800SWM-L
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE WIFI U.FL ANT
PDF
/
Buying Options
Total Price: USD $86.54
Unit Price: USD $86.5392
≥1 USD $86.5392
≥10 USD $73.53192
≥100 USD $66.744656
Inventory: 96
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 17mm
Length 64.5mm
Technical
Sensitivity (dBm) -82 dBm
Current - Transmitting 180mA
Current - Receiving 180mA
Serial Interfaces UART
Sensitivity -82dBm
Antenna Type Antenna Not Included, U.FL
RF Family/Standard WiFi
Power - Output 15dBm
Protocol 802.11b/g
Data Rate 54Mbps
Nominal Supply Current 400mA
Interface Serial, UART
Operating Supply Voltage 3.3V
Frequency 2.4GHz
Voltage - Supply 3.3V
Min Operating Temperature -30°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series SocketWireless? WiFi?
Packaging Tray
Operating Temperature -30°C~70°C
Physical
Weight 28.349523g
Package / Case Module
Mounting Type Through Hole
Mount Through Hole
