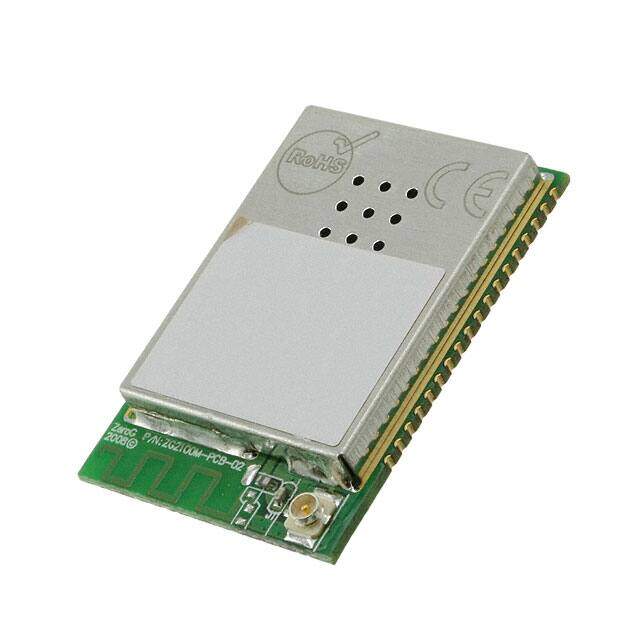

ZG2101MC image
Favorite
ZG2101MC image
Favorite
RoHS
RoHS RoHS compliant
Package 36-DFN Module
Category RF/IF and RFID / RF Transceiver Modules
Description MOD, WI-FI W/UFL EXT ANT CONNX, 802.11 - More Details
PDF
/
Inventory: 5097
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Technical

Sensitivity (dBm) -91 dBm
Current - Transmitting 154mA
Current - Receiving 85mA
Serial Interfaces SPI, UART
Antenna Type Antenna Not Included, U.FL
RF Family/Standard WiFi
Power - Output 10dBm
Telecom IC Type TELECOM CIRCUIT
Protocol 802.11b/g/n
Data Rate 2Mbps
Interface SPI, UART
Operating Supply Voltage 3.63V
JESD-30 Code R-XDMA-N
Frequency 2.4GHz
Supply Voltage 3.3V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 2.7V~3.6V
HTS Code 8542.39.00.01
Terminal Finish MATTE TIN
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 2009
Packaging Bulk
Operating Temperature 0°C~70°C

Physical

Package / Case 36-DFN Module
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
