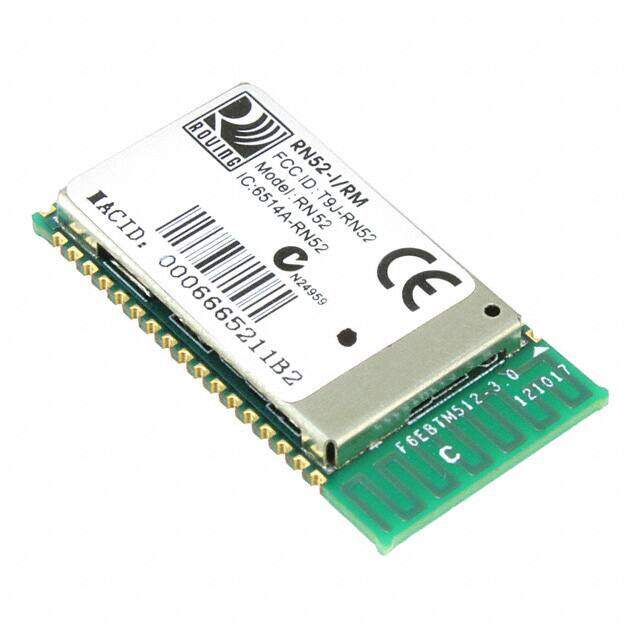

RN52-I/RM
RoHS
RoHS compliant
RoHS compliantPackage 50-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH TRACE ANT
PDF
/
Buying Options
Total Price: USD $71.82
Unit Price: USD $71.822195
≥1 USD $71.822195
≥200 USD $27.795406
≥500 USD $26.818608
≥1000 USD $26.335461
Inventory: 1604
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 50-SMD Module
Surface Mount YES
Number of Pins 50
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 50
Voltage - Supply 3V~3.6V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Current Rating 30mA
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number RN52
Operating Supply Voltage 3.6V
Supply Voltage-Min (Vsup) 3V
Interface SPI, UART, USB
Memory Size 16MB Flash
Data Rate 3Mbps
Protocol Bluetooth v3.0, Class 2
Power - Output 4dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Trace
Consumer IC Type CONSUMER CIRCUIT
Serial Interfaces AIO, I2S, SPI, UART, USB
Modulation DPSK, DQPSK, GFSK
Sensitivity (dBm) -85 dBm
Firmware Version 1.1
Dimensions
Height 2.7mm
Length 26mm
Width 12.75mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
