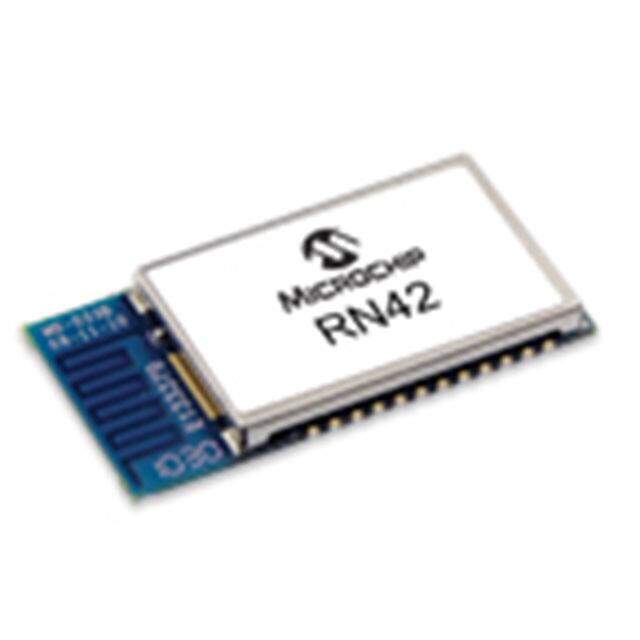

RN42HCI-I/RM image
Favorite
RN42HCI-I/RM image
Favorite

RN42HCI-I/RM

Microchip Technology
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description Bluetooth 2.1 Class 2 surface mount moD w/HCI H4 over UART interface.
PDF
/
Buying Options
Total Price: USD $17.34
Unit Price: USD $17.3448
≥1 USD $17.3448
Inventory: 380
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 35

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Published 2010
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Voltage - Supply 3V~3.6V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 3.3V
Frequency 2.4GHz
Base Part Number RN42
JESD-30 Code R-XXMA-N32
Interface SPI, UART, USB
Data Rate 300kbps
Protocol Bluetooth v2.1 +EDR, Class 2
Screening Level TS 16949
Telecom IC Type TELECOM CIRCUIT
Power - Output 4dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Trace
Serial Interfaces UART
Current - Receiving 45mA
Current - Transmitting 30mA
Sensitivity (dBm) -80 dBm
Firmware Version HCI

Dimensions

Height Seated (Max) 2.4mm
Length 25.8mm
Width 13.4mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
