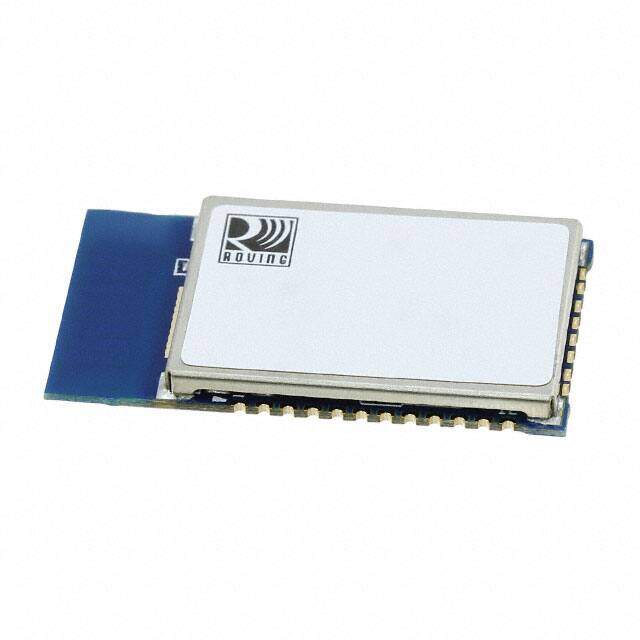

RN42-I/RM630
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
BLUETOOTH 3.0+ EDR CLASS 1 MODUL
PDF
/
Buying Options
Total Price: USD $29.74
Unit Price: USD $29.74235
≥1 USD $29.74235
≥10 USD $28.05883
≥100 USD $26.47059
Inventory: 1923
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2010
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Voltage - Supply 3V~3.6V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 3.3V
Frequency 2.4GHz
Base Part Number RN42
Interface SPI, UART, USB
Data Rate 3Mbps
Protocol Bluetooth v2.1 + EDR
Screening Level TS 16949
Telecom IC Type TELECOM CIRCUIT
Power - Output 4dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Trace
Number of ADC Channels 2
Serial Interfaces SPI, UART, USB
Current - Receiving 40mA
Current - Transmitting 45mA
Sensitivity (dBm) -80 dBm
Number of GPIO 10
Firmware Version 6.3
Dimensions
Height 2.5mm
Width 13.4mm
Compliance
RoHS Status ROHS3 Compliant
