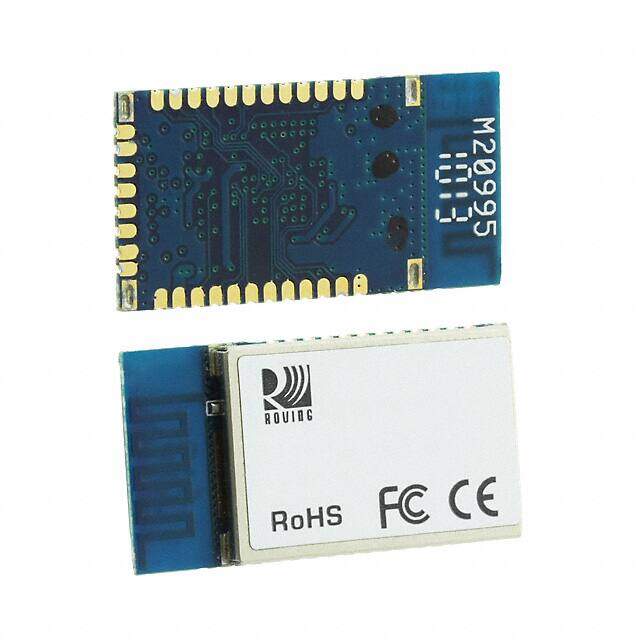

RN42-I/RM
RoHS
RoHS compliant
RoHS compliantPackage 35-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
MICROCHIP - RN42-I/RM - Module Bluetooth classe 2 série RN 42 avec antenne sur puce
PDF
/
Buying Options
Total Price: USD $30.01
Unit Price: USD $30.011577
≥1 USD $30.011577
≥10 USD $28.989912
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
≥3000 USD $26.84795
Inventory: 13
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 35-SMD Module
Number of Pins 35
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2010
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Voltage - Supply 3V~3.6V
Terminal Position UNSPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Frequency 2.4GHz
Base Part Number RN42
JESD-30 Code R-XXMA-N32
Operating Supply Voltage 3.3V
Interface SPI, UART
Data Rate 300kbps
Protocol Bluetooth v2.1 +EDR, Class 2
Screening Level TS 16949
Telecom IC Type TELECOM CIRCUIT
Power - Output 4dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Trace
Serial Interfaces UART
Current - Receiving 25mA
Current - Transmitting 30mA
Sensitivity (dBm) -80 dBm
Firmware Version 6.15
Dimensions
Height 2mm
Length 25.8mm
Width 13.4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
