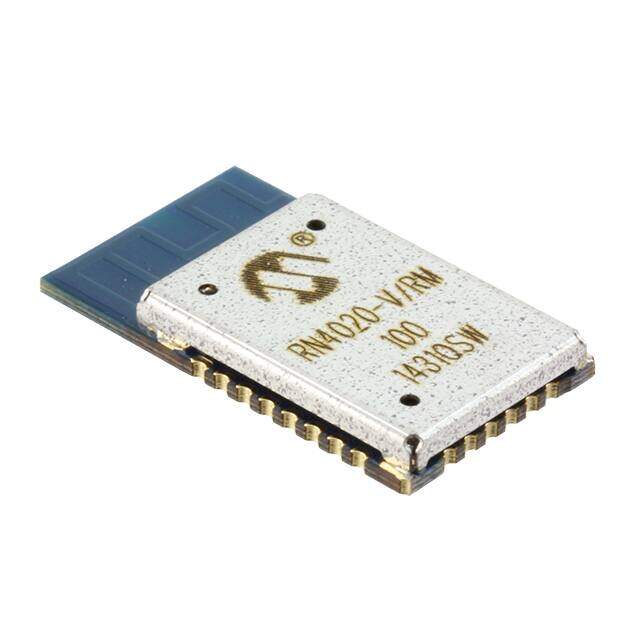

RN4020-V/RM
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
BLUETOOTH, VER 4.1, 2.4-2.48GHZ, 1MBPS
PDF
/
Buying Options
Total Price: USD $10.23
Unit Price: USD $10.2256
≥1 USD $10.2256
≥10 USD $9.349824
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 24
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
HTS Code 8542.39.00.01
Voltage - Supply 1.8V~3.6V
Terminal Position UNSPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.2mm
Frequency 2.4GHz
Base Part Number RN4020
Interface SPI, UART
Memory Size 64kB Flash
Data Rate 1Mbps
Protocol Bluetooth v4.1
Telecom IC Type TELECOM CIRCUIT
Power - Output 7.5dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Trace
Serial Interfaces AIO, PIO, SPI, UART
Current - Receiving 16mA
Modulation GFSK
Sensitivity (dBm) -92.5 dBm
Firmware Version 1.10.09
Dimensions
Height Seated (Max) 2.38mm
Length 19.5mm
Width 11.5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
