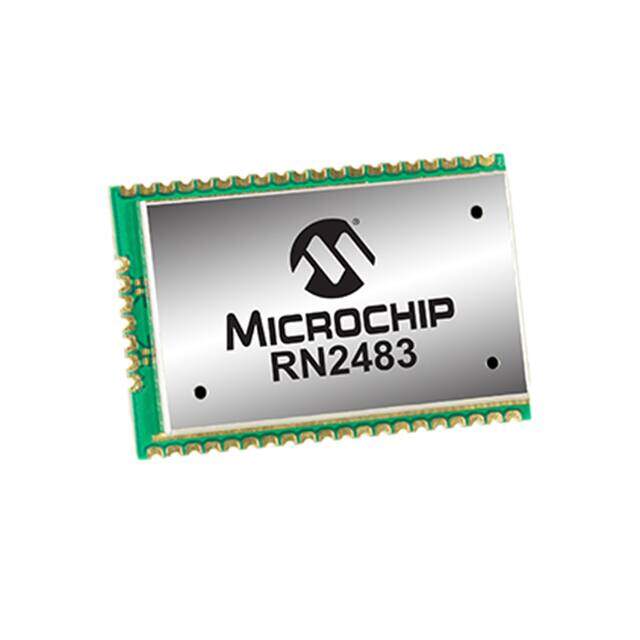

RN2483A-I/RM104
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RN2483A-I/RM104
PDF
/
Buying Options
Total Price: USD $15.31
Unit Price: USD $15.312
≥1 USD $15.312
≥10 USD $14.002912
Inventory: 1708
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case Module
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 47
Voltage - Supply 2.1V~3.6V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Frequency 433MHz 868MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number RN2483
JESD-30 Code R-XXMA-N47
Data Rate 300kbps
Protocol LoRa?
Telecom IC Type ETHERNET TRANSCEIVER
Power - Output 14dBm
RF Family/Standard General ISM < 1GHz
Antenna Type Antenna Not Included, Castellation
Sensitivity -146dBm
Serial Interfaces I2C, SPI, UART
Current - Receiving 14mA
Current - Transmitting 39mA
Modulation FSK, GFSK
Firmware Version 1.0.4
Dimensions
Height Seated (Max) 3.367mm
Length 26.67mm
Width 17.78mm
Compliance
RoHS Status ROHS3 Compliant
