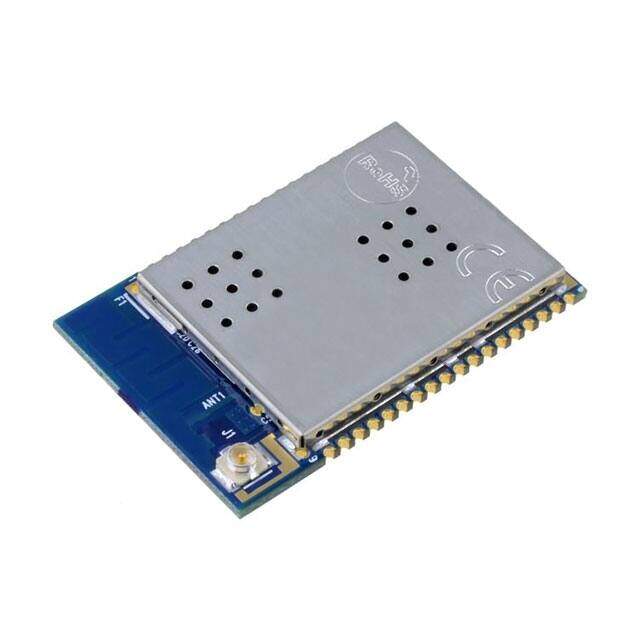

MRF24WG0MB-I/RM
RoHS
RoHS compliant
RoHS compliantPackage 36-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
WiFi / 802.11 Modules Dual 3.3V2.4GHz Opam
PDF
/
Buying Options
Total Price: USD $113.59
Unit Price: USD $113.5877
≥1 USD $113.5877
≥10 USD $109.801
≥100 USD $98.4428
Inventory: 1065
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 21mm
Length 31mm
Height 2.7mm
Technical
Firmware Version 310C
Sensitivity (dBm) -95 dBm
Modulation DSSS, OFDM
Current - Transmitting 226mA~237mA
Current - Receiving 156mA
Serial Interfaces SPI
Antenna Type Antenna Not Included, U.FL
RF Family/Standard WiFi
Power - Output 18dBm
Telecom IC Type TELECOM CIRCUIT
Protocol 802.11b/g
Data Rate 54Mbps
Number of Channels 11
Power Supplies 3.3V
Base Part Number MRF24WG0M
Frequency 2.4GHz
Depth 21mm
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 2.8V~3.6V
Subcategory Other Telecom ICs
HTS Code 8542.39.00.01
Terminal Finish MATTE TIN
Number of Terminations 36
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 36
Package / Case 36-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
