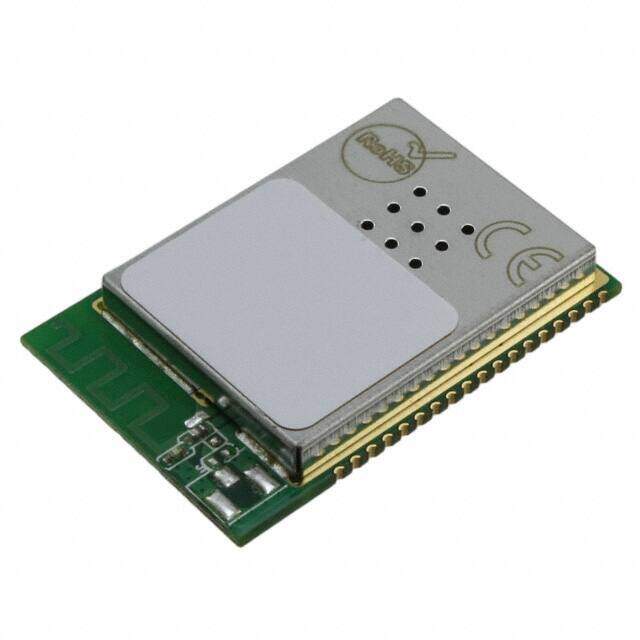

MRF24WB0MA/RM
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
MICROCHIP MRF24WB0MA/RM WIFI MODULE, TXRX, 2.4GHZ, PCB ANT
PDF
/
Buying Options
Total Price: USD $15.66
Unit Price: USD $15.656
≥1 USD $15.656
≥10 USD $12.8459
≥100 USD $12.44405
≥500 USD $12.04315
≥1000 USD $11.6413
Inventory: 9674
Minimum: 1
-
+
Technical Details
Technical
Operating Supply Voltage 3.3V
Interface SPI
Nominal Supply Current 154mA
Data Rate 2Mbps
Protocol 802.11b
Telecom IC Type TELECOM CIRCUIT
Power - Output 10dBm
Base Part Number MRF24WB0M
Frequency 2.4GHz
Depth 21mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Position UPPER
Voltage - Supply 2.7V~3.6V
Subcategory Other Telecom ICs
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn)
Number of Terminations 36
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 2008
Packaging Tray
Operating Temperature -40°C~85°C
Firmware Version A0C
Sensitivity (dBm) -91 dBm
Modulation DSSS
Current - Transmitting 115mA~154mA
Current - Receiving 85mA
Serial Interfaces JTAG, SPI
Antenna Type Integrated, Trace
RF Family/Standard WiFi
Physical
Number of Pins 36
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 21mm
Length 31mm
Height 2.7mm
