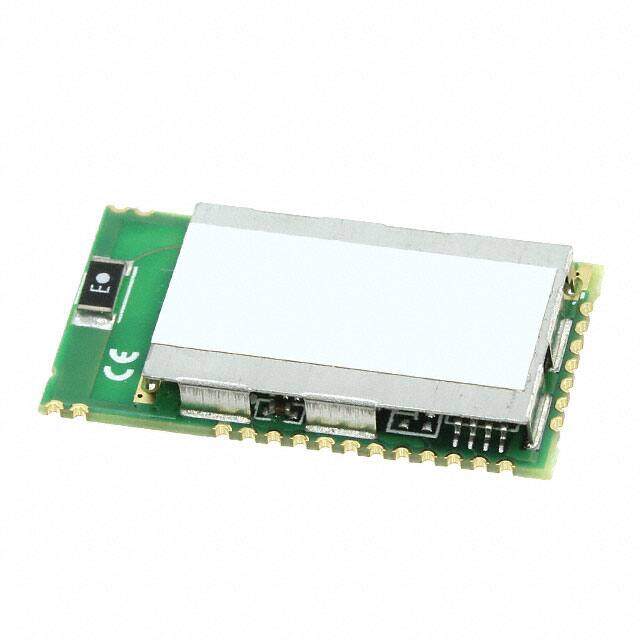

BM77SPPS3MC2-0007AA
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Buying Options
Total Price: USD $41.47
Unit Price: USD $41.47415
≥1 USD $41.47415
≥10 USD $34.02995
≥100 USD $32.9669
≥500 USD $31.90385
≥1000 USD $30.83985
Inventory: 1268
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 22mm
Length 12mm
Height 2.4mm
Technical
Firmware Version 1.42
Sensitivity (dBm) -92 dBm
Current - Receiving 70mA
Serial Interfaces UART
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 2dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.0 Dual Mode
Data Rate 50kbps
JESD-30 Code R-XQMA-N33
Base Part Number BM77
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 3.2V~4.3V
HTS Code 8542.39.00.01
Number of Terminations 33
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2015
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Number of Pins 30
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
