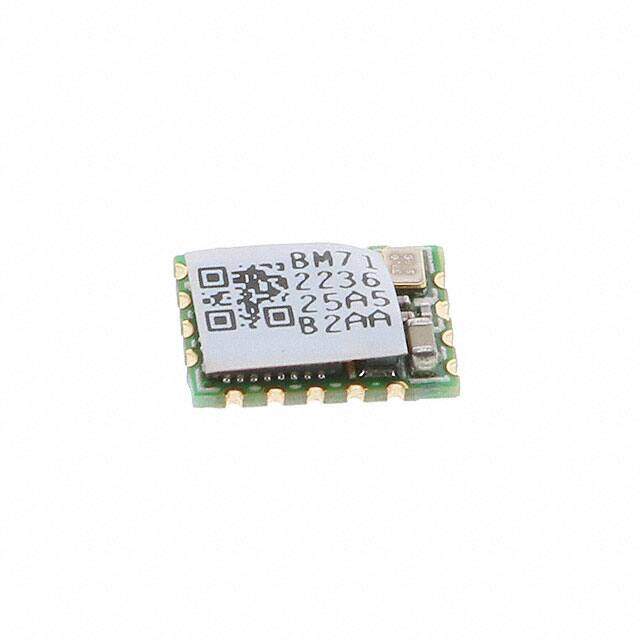

BM71BLE01FC2-0B02AA
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
BLUETOOTH 5.0 BLE MODULE
PDF
/
Buying Options
Total Price: USD $6.73
Unit Price: USD $6.732
≥1 USD $6.732
≥10 USD $6.149088
Inventory: 909
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 8mm
Height Seated (Max) 1.6mm
Technical
Firmware Version 1.06
Current - Transmitting 13mA
Current - Receiving 10mA~13mA
Serial Interfaces UART
Sensitivity -90dBm
Antenna Type Antenna Not Included, Castellation
RF Family/Standard Bluetooth
Power - Output 2dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v5.0
Data Rate 8.6 Mbps
JESD-30 Code R-XXMA-N17
Base Part Number BM71
Time@Peak Reflow Temperature-Max (s) 30
Frequency 2.4GHz
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 1.9V~3.6V
Number of Terminations 17
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2017
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
