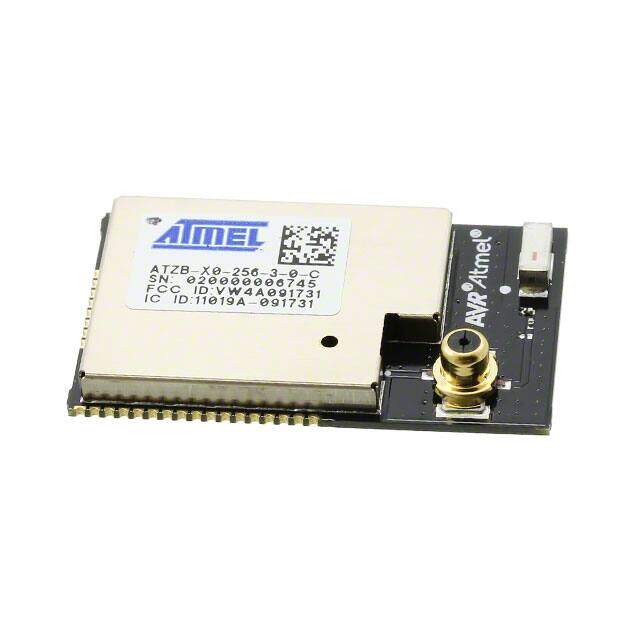

ATZB-X0-256-3-0-C
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE 802.15.4 CHIP ANT
PDF
/
Inventory: 6167
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Sensitivity (dBm) -96 dBm
Current - Transmitting 5.6mA~20.5mA
Current - Receiving 6.1mA~17mA
Serial Interfaces ISP, JTAG, SPI, UART, USART
Antenna Type Integrated, Chip
RF Family/Standard 802.15.4
Power - Output 4dBm
Protocol Zigbee?
Utilized IC / Part AT86RF233
Data Rate 2Mbps
RAM Size 16kB
Memory Size 256kB Flash 4kB EEPROM 16kB SRAM
Interface SPI, UART, USART
Number of Channels 16
Operating Supply Voltage 3V
Frequency 2.4GHz
Voltage - Supply 1.8V~3.6V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series ZigBit?
Published 1999
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 42
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
