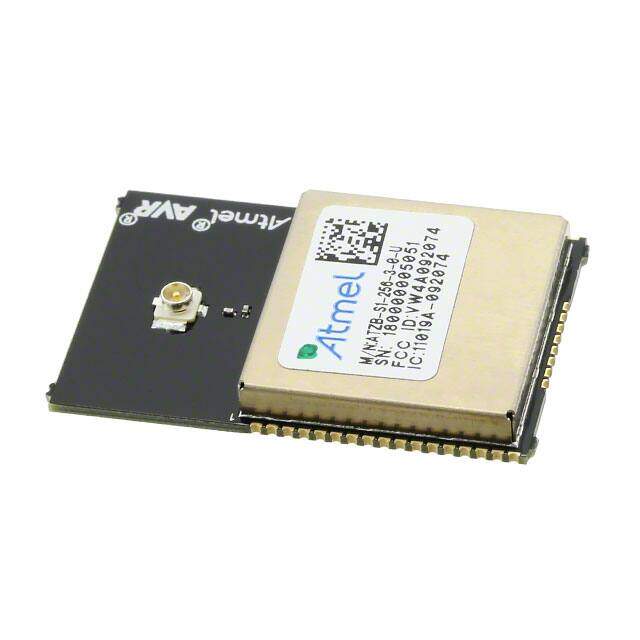

ATZB-S1-256-3-0-U
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
ZigBee/802.15.4 Modules 2483.5MHz 115.2Kbps 42-Pin SMD Bulk
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.293636
≥1 USD $2.293636
≥200 USD $0.915091
≥500 USD $0.884895
≥1000 USD $0.870453
Inventory: 9813
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 20mm
Length 30mm
Height Seated (Max) 3.5mm
Technical
Sensitivity (dBm) -97 dBm
Current - Transmitting 9.9mA~16.3mA
Current - Receiving 17mA
Serial Interfaces ISP, JTAG, SPI, UART, USART
Antenna Type Antenna Not Included, U.FL
RF Family/Standard 802.15.4
Power - Output 3.5dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Zigbee?
Data Rate 2Mbps
RAM Size 32kB
Memory Size 256kB Flash 8kB EEPROM 32kB SRAM
Interface SPI, UART, USART
Number of Channels 16
Operating Supply Voltage 3V
Frequency 2.4GHz
Supply Voltage 3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 1.8V~3.6V
Number of Terminations 42
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series ZigBit?
Published 2014
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Number of Pins 42
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
