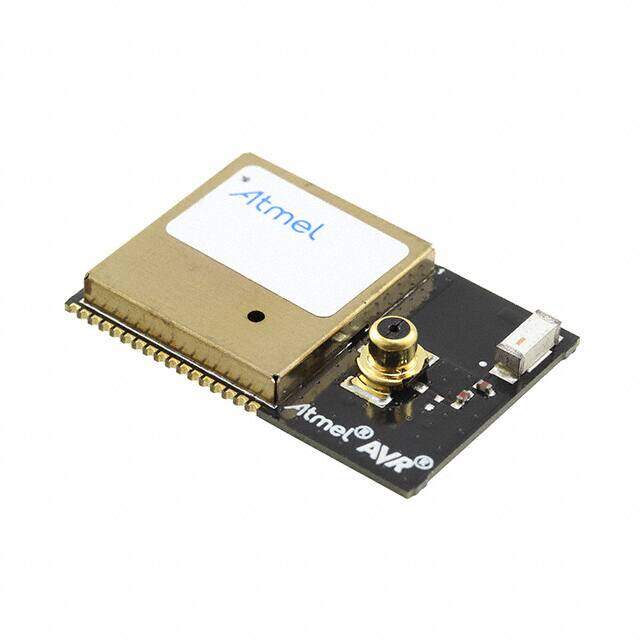

ATZB-S1-256-3-0-C image
Favorite
ATZB-S1-256-3-0-C image
Favorite

ATZB-S1-256-3-0-C

Microchip Technology
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MODULE 802.15.4 CHIP ANT
PDF
/
Buying Options
Total Price: USD $49.77
Unit Price: USD $49.76955
≥1 USD $49.76955
≥10 USD $40.8367
≥100 USD $39.5599
≥500 USD $38.28405
≥1000 USD $37.0082
Inventory: 1704
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Technical

Sensitivity (dBm) -97 dBm
Current - Transmitting 9.9mA~16.3mA
Current - Receiving 9.6mA~17mA
Serial Interfaces ISP, JTAG, SPI, UART, USART
Antenna Type Integrated, Chip
RF Family/Standard 802.15.4
Power - Output 3.5dBm
Protocol Zigbee?
Data Rate 2Mbps
RAM Size 32kB
Memory Size 256kB Flash 8kB EEPROM 32kB SRAM
Interface SPI, UART, USART
Number of Channels 16
Operating Supply Voltage 3V
Frequency 2.4GHz
Voltage - Supply 1.8V~3.6V
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series ZigBit?
Published 1999
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 42
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
