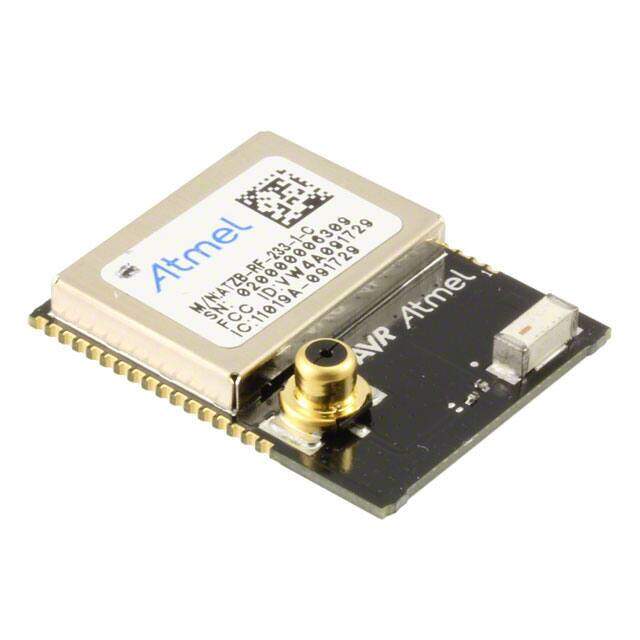

ATZB-RF-233-1-CR image
Favorite
ATZB-RF-233-1-CR image
Favorite

ATZB-RF-233-1-CR

Microchip Technology
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MODULE 802.15.4 CHIP ANT
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
Inventory: 162
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 3.2mm

Technical

Sensitivity (dBm) -105 dBm
Current - Transmitting 157mA
Current - Receiving 7.5mA~17mA
Serial Interfaces SPI
Antenna Type Integrated, Chip
RF Family/Standard 802.15.4
Power - Output 19.9dBm
Protocol Zigbee?
Bandwidth 83.5MHz
Utilized IC / Part AT86RF233
Data Rate 2Mbps
Frequency 2.4GHz
Voltage - Supply 2V~3.6V
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
Pbfree Code yes
Series ZigBit?
Published 2014
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C

Physical

Manufacturer Package Identifier ATZB-RF-233-1-CR
Number of Pins 42
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
