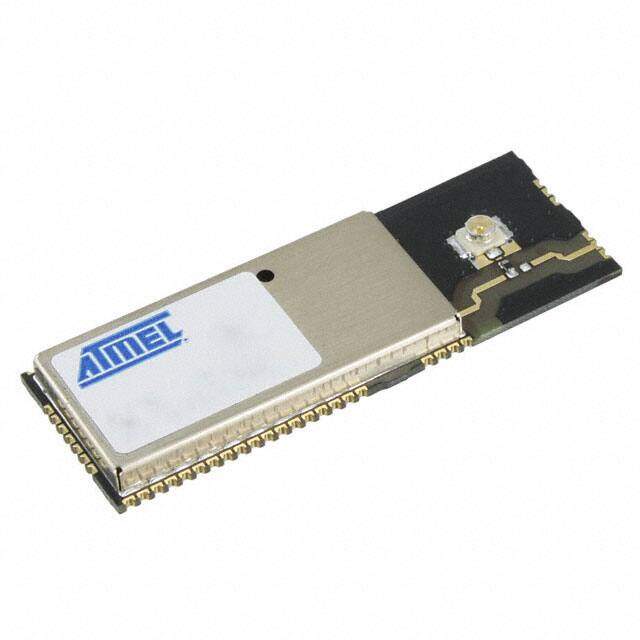

ATZB-A24-UFLBR

Microchip Technology
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description Zigbee / 802.15.4 Modules ZigBit Amp 2.4 GHz UFL Rev B
PDF
/
Buying Options
Total Price: USD $32.18
Unit Price: USD $32.1841
≥1 USD $32.1841
≥10 USD $26.4081
≥100 USD $25.58255
≥500 USD $24.757
≥1000 USD $23.9324
Inventory: 6203
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Technical

Sensitivity (dBm) -107 dBm
Current - Transmitting 183.5mA
Current - Receiving 39.5mA
Serial Interfaces I2C, JTAG, SPI, UART, USART
Sensitivity -101dBm
Antenna Type Antenna Not Included, U.FL
RF Family/Standard 802.15.4
Power - Output 20dBm
Protocol Zigbee?
Utilized IC / Part AT86RF230
Data Rate 250kbps
Memory Size 128kB Flash 4kB EEPROM 8kB RAM
Interface I2C, SPI, UART
Number of Channels 16
Frequency 2.4GHz
Voltage - Supply 3V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series ZigBit?
Packaging Cut Tape (CT)
Operating Temperature -20°C~70°C

Physical

Number of Pins 57
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
