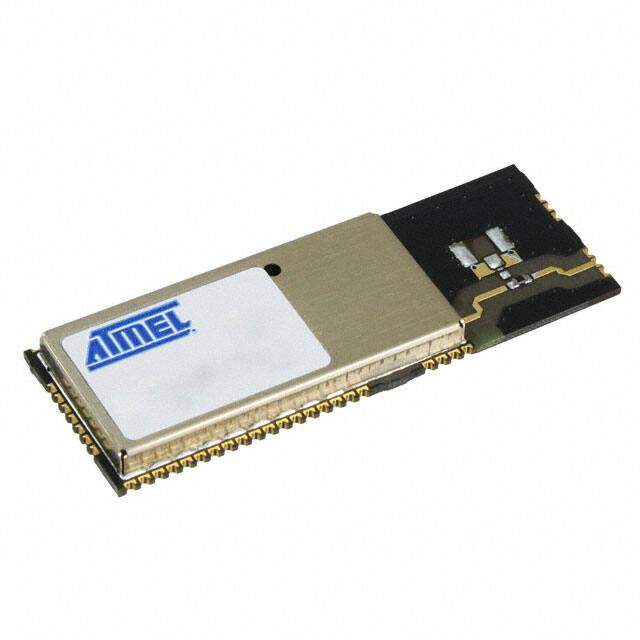

ATZB-A24-U0B
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
Zigbee / 802.15.4 Modules ZigBit Amp 2.4 GHz Unbal Output Rev B
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
Inventory: 26
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 57
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2013
Series ZigBit?
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Voltage - Supply 3V~3.6V
Frequency 2.4GHz
Operating Supply Voltage 3V
Number of Channels 16
Interface I2C, USART
Memory Size 128kB Flash 4kB EEPROM 8kB RAM
Data Rate 250kbps
Utilized IC / Part AT86RF230
Protocol Zigbee?
Power - Output 20dBm
RF Family/Standard 802.15.4
Antenna Type Antenna Not Included
Sensitivity -101dBm
Serial Interfaces I2C, JTAG, SPI, UART, USART
Current - Receiving 39.5mA
Current - Transmitting 183.5mA
Sensitivity (dBm) -101 dBm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
