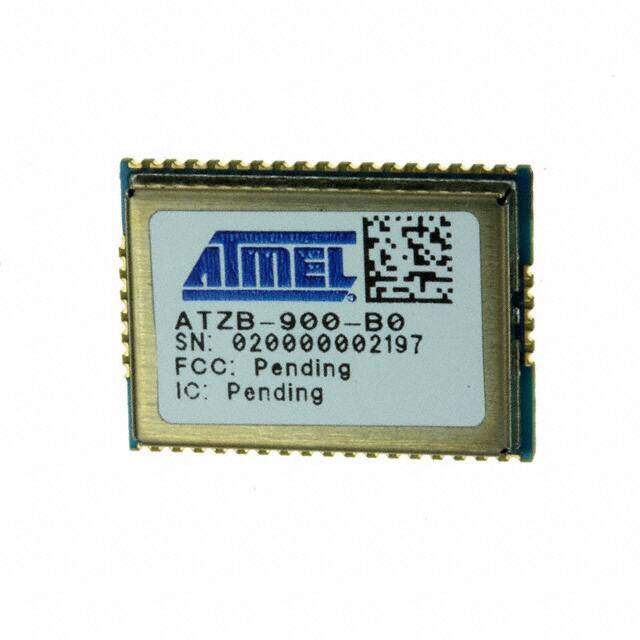

ATZB-900-B0R
RoHS
RoHS compliant
RoHS compliantPackage PCB Module
Category RF/IF and RFID / RF Transceiver Modules
Description
ATMEL ATZB-900-B0R ZIGBEE MODULE, BALANCED RF PORT
PDF
/
Buying Options
Total Price: USD $36.16
Unit Price: USD $36.1608
≥1 USD $36.1608
≥10 USD $29.6704
≥100 USD $28.7432
≥500 USD $27.816
≥1000 USD $26.8888
Inventory: 6505
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 13.5mm
Length 18.8mm
Height 2mm
Technical
Sensitivity (dBm) -110 dBm
Modulation BPSK, O-QPSK
Current - Transmitting 20mA
Current - Receiving 15mA
Serial Interfaces I2C, JTAG, SPI, UART, USART
Sensitivity -110dBm
Antenna Type Antenna Not Included, RP-SMA
RF Family/Standard 802.15.4
Power - Output 11dBm
Max Frequency 928MHz
Protocol Zigbee?
Utilized IC / Part MKW22D512V
Data Rate 250kbps
RAM Size 8kB
Memory Size 128kB Flash 4kB EEPROM 8kB RAM
Min Supply Voltage 1.8V
Max Supply Voltage 3.6V
Interface I2C, SPI, UART, USART
Number of Channels 15
Frequency 783MHz 868MHz 915MHz
Voltage - Supply 1.8V~3.6V
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series ZigBit?
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Number of Pins 48
Package / Case PCB Module
Mounting Type Surface Mount
Mount Surface Mount
