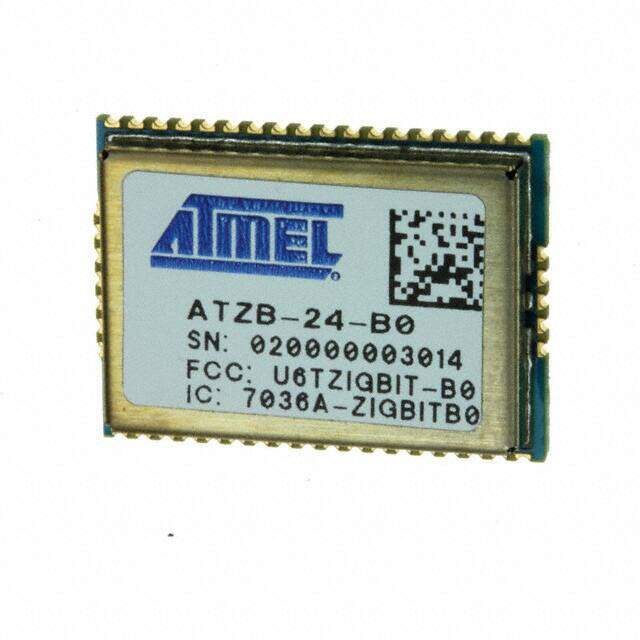

ATZB-24-B0R
RoHS
RoHS compliant
RoHS compliantPackage PCB Module
Category RF/IF and RFID / RF Transceiver Modules
Description
ATMEL ATZB-24-B0R ZIGBEE MOD, 2.4GHZ, BALANCED RF PORT
PDF
/
Inventory: 9209
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 13.5mm
Length 18.8mm
Height 2mm
Technical
Sensitivity (dBm) -104 dBm
Current - Transmitting 20.8mA
Current - Receiving 21.8mA
Serial Interfaces I2C, JTAG, SPI, UART, USART
Sensitivity -101dBm
Antenna Type Antenna Not Included, SMA
RF Family/Standard 802.15.4
Power - Output 3dBm
Max Frequency 2.4835GHz
Protocol Zigbee?
Utilized IC / Part AT86RF230
Data Rate 250kbps
RAM Size 8kB
Memory Size 128kB Flash 4kB EEPROM 8kB RAM
Min Supply Voltage 1.8V
Max Supply Voltage 3.6V
Interface I2C, SPI, UART
Number of Channels 16
Frequency 2.4GHz
Voltage - Supply 1.8V~3.6V
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series ZigBit?
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Number of Pins 48
Package / Case PCB Module
Mounting Type Surface Mount
Mount Surface Mount
