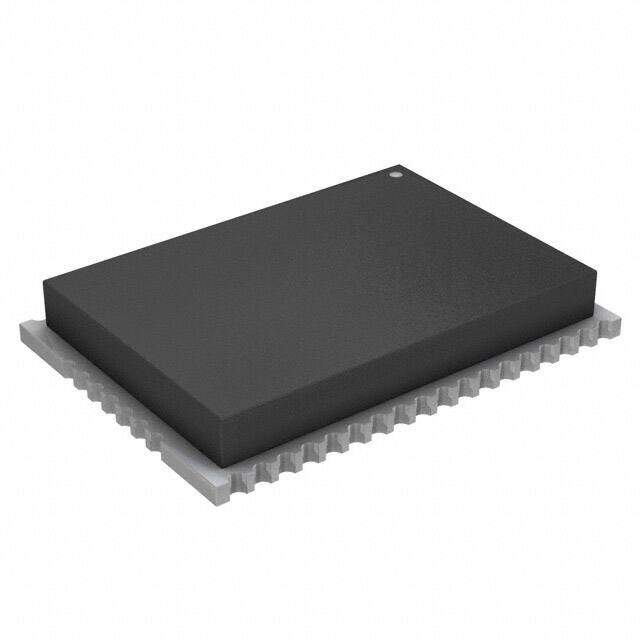

ATZB-24-A2 image
Favorite
ATZB-24-A2 image
Favorite
RoHS
RoHS RoHS compliant
Package PCB Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MODULE 802.15.4 CHIP ANT
PDF
/
Buying Options
Total Price: USD $26.85
Unit Price: USD $26.84795
≥1 USD $26.84795
≥10 USD $22.02955
≥100 USD $21.3408
≥500 USD $20.653
≥1000 USD $19.96425
Inventory: 6703
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Technical

Sensitivity (dBm) -104 dBm
Current - Transmitting 20.8mA
Current - Receiving 21.8mA
Serial Interfaces I2C, JTAG, SPI, UART, USART
Sensitivity -101dBm
Antenna Type Integrated, Chip
RF Family/Standard 802.15.4
Power - Output 3dBm
Max Frequency 2.4835GHz
Protocol Zigbee?
Utilized IC / Part AT86RF230
Data Rate 250kbps
RAM Size 8kB
Memory Size 128kB Flash 4kB EEPROM 8kB RAM
Min Supply Voltage 1.8V
Max Supply Voltage 3.6V
Interface I2C, SPI, UART
Number of Channels 16
Frequency 2.4GHz
Voltage - Supply 1.8V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series ZigBit?
Published 2009
Packaging Bulk
Operating Temperature -20°C~70°C

Physical

Number of Pins 43
Package / Case PCB Module
Mounting Type Surface Mount
Mount Surface Mount
