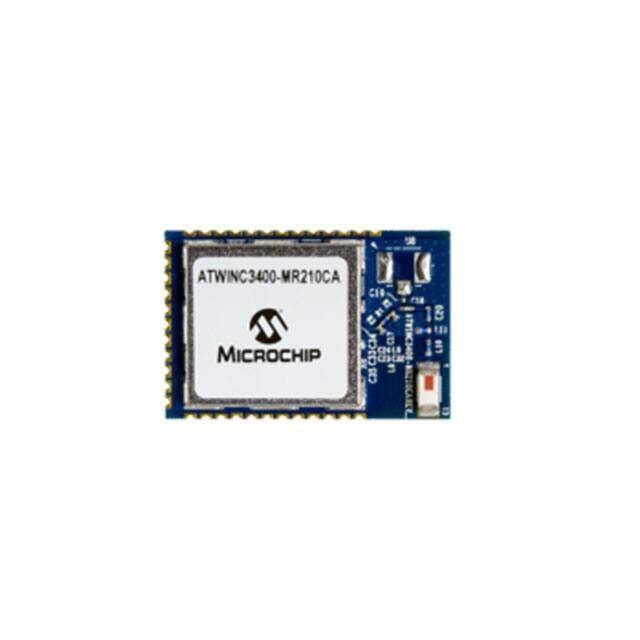

ATWINC3400-MR210CA131-T
RoHS
RoHS compliant
RoHS compliantPackage 36-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
BLUETOOTH 5 MODULE CHIP ANTENNA
PDF
/
Buying Options
Total Price: USD $12.52
Unit Price: USD $12.5224
≥1 USD $12.5224
≥10 USD $11.3432
≥100 USD $10.736
Inventory: 460
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 36-SMD Module
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 36
Additional Feature SEATED HGT-CALCULATED
Technology CMOS
Voltage - Supply 2.7V~3.6V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Supply Voltage 3.6V
Terminal Pitch 1.204mm
Frequency 2.412GHz~2.472GHz
JESD-30 Code R-XXMA-N36
Memory Size 256kB ROM 708kB RAM
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Data Rate 72.2Mbps
Protocol 802.11b/g/n, Bluetooth v5.0
Power - Output 18.3dBm
RF Family/Standard Bluetooth, WiFi
Antenna Type Integrated, Chip
Sensitivity -95dBm
Serial Interfaces I2C, SPI, UART
Current - Receiving 63.9mA
Current - Transmitting 232mA~275mA
Modulation 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Dimensions
Height Seated (Max) 2.0874mm
Length 22.3774mm
Width 14.732mm
Compliance
RoHS Status ROHS3 Compliant
