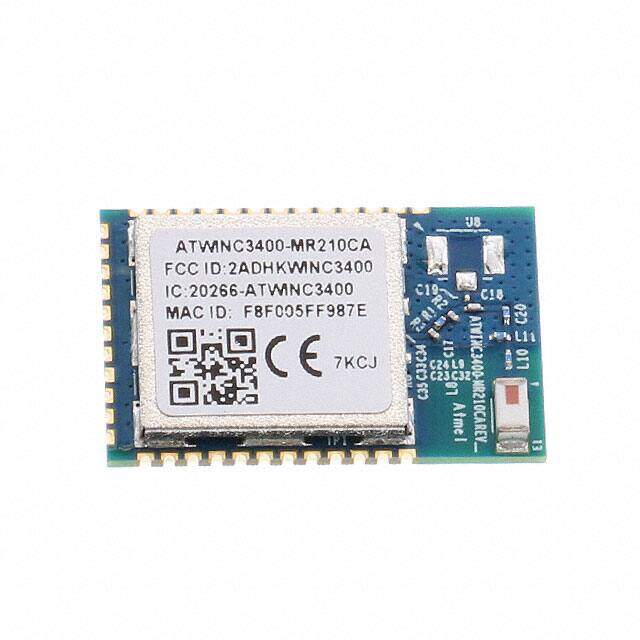

ATWINC3400-MR210CA122
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
MICROCHIP - ATWINC3400-MR210CA122 - BLUETOOTH MODULE, V4.0, -90DB
PDF
/
Buying Options
Total Price: USD $12.49
Unit Price: USD $12.4872
≥1 USD $12.4872
≥10 USD $11.3168
≥100 USD $10.709688
Inventory: 2301
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case Module
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 37
HTS Code 8542.31.00.01
Technology CMOS
Voltage - Supply 2.5V~4.2V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.6V
Terminal Pitch 1.204mm
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number ATWINC3400
JESD-30 Code R-XXMA-N37
Interface I2C, SPI, UART
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Data Rate 54Mbps
Bandwidth 60MHz
Protocol 802.11b/g/n
Screening Level TS 16949
Power - Output 18.3dBm
RF Family/Standard WiFi
Antenna Type Integrated, Chip
Sensitivity -92.5dBm
Serial Interfaces I2C, SPI, UART
Current - Receiving 64mA
Current - Transmitting 265mA
Max Junction Temperature (Tj) 125°C
Number of GPIO 21
Firmware Version 1.2.2
Dimensions
Height 2.087mm
Length 22.428mm
Compliance
RoHS Status ROHS3 Compliant
