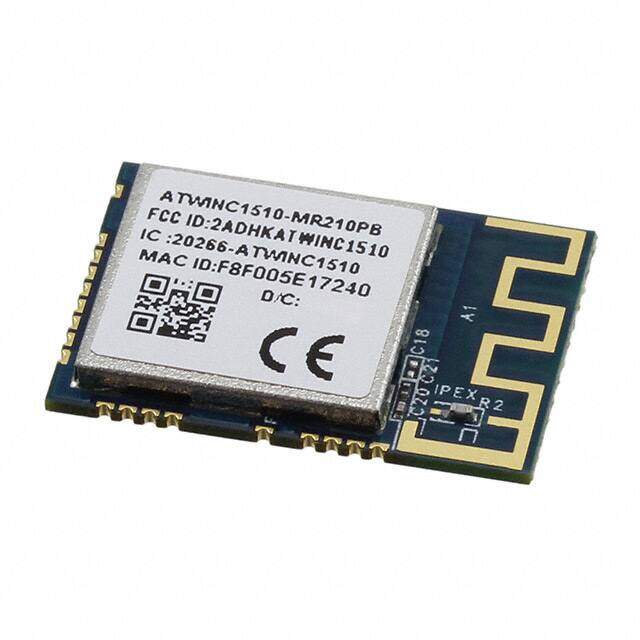

ATWINC1510-MR210PB1944
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
SMARTCONNECT ATWINC1500B-MU-T MO
PDF
/
Buying Options
Total Price: USD $4.27
Unit Price: USD $4.269551
≥1 USD $4.269551
≥10 USD $3.741765
≥30 USD $3.418792
≥100 USD $3.149647
Inventory: 4334
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 14.73mm
Length 21.72mm
Height Seated (Max) 2.113mm
Technical
Firmware Version 19.4.4
Modulation 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Current - Transmitting 265mA
Current - Receiving 61mA
Serial Interfaces I2C, SPI, UART
Sensitivity -95dBm
Antenna Type Integrated, Trace
RF Family/Standard WiFi
Power - Output 18.5dBm
Protocol 802.11b/g/n
Data Rate 72.2Mbps
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Memory Size 8MB Flash 128kB RAM
JESD-30 Code R-XXMA-N28
Frequency 2.4GHz
Supply Voltage 3.3V
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 2.7V~3.6V
Technology CMOS
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2017
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
