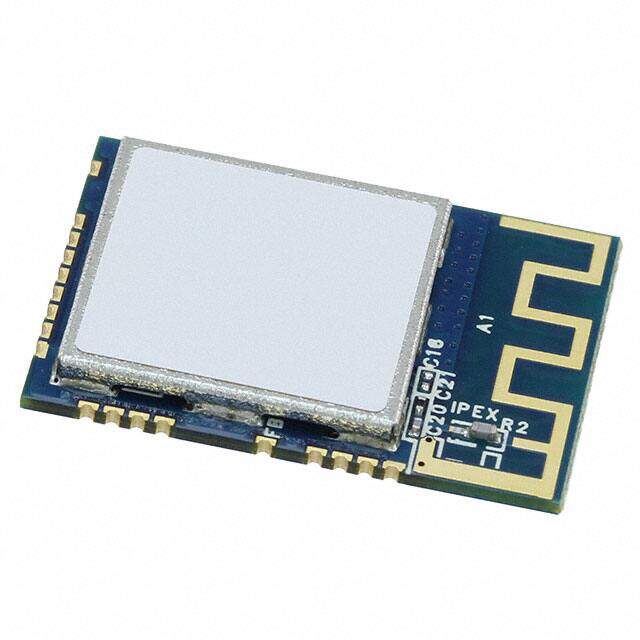

ATWINC1510-MR210PB
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE WIFI TRACE ANT
PDF
/
Buying Options
Total Price: USD $36.89
Unit Price: USD $36.888551
≥1 USD $36.888551
≥200 USD $14.276475
≥500 USD $13.773634
≥1000 USD $13.526809
Inventory: 1426
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 40
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2015
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
Additional Feature SEATED HGT-NOM
Technology CMOS
Voltage - Supply 2.7V~3.6V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 3.6V
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-N28
Operating Supply Voltage 3.6V
Number of Channels 1
Interface I2C, SPI, UART
Memory Size 8MB Flash 128kB RAM
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Data Rate 72.2Mbps
Protocol 802.11b/g/n
Power - Output 18.5dBm
RF Family/Standard WiFi
Antenna Type Integrated, Trace
Sensitivity -95dBm
Serial Interfaces I2C, SPI, UART
Current - Receiving 61mA
Current - Transmitting 265mA
Modulation 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Sensitivity (dBm) -98 dBm
Firmware Version 19.4.4
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
