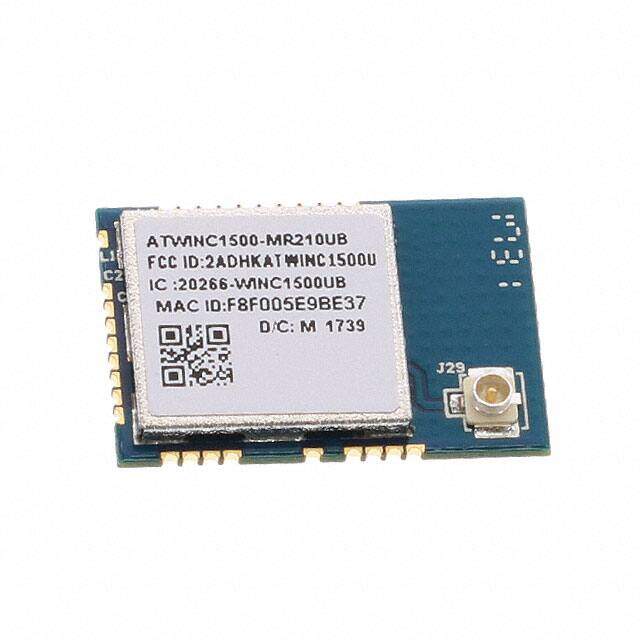

ATWINC1500-MR210UB1140
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
SMARTCONNECT ATWINC1500B-MU-T MO
PDF
/
Inventory: 2485
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 14.73mm
Length 21.72mm
Height Seated (Max) 2.113mm
Technical
Firmware Version 19.4.4
Current - Transmitting 22mA~269mA
Current - Receiving 22mA~61mA
Serial Interfaces SPI, UART
Sensitivity -90dBm
Antenna Type Integrated, Trace + U.FL
RF Family/Standard WiFi
Power - Output 19dBm
Protocol 802.11b/g/n
Utilized IC / Part ATWINC1500
Data Rate 72.2Mbps
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
JESD-30 Code R-XXMA-N28
Frequency 2.4GHz
Supply Voltage 3.6V
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 3V~4.2V
Technology CMOS
Additional Feature SEATED HGT-NOM
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Published 2017
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
