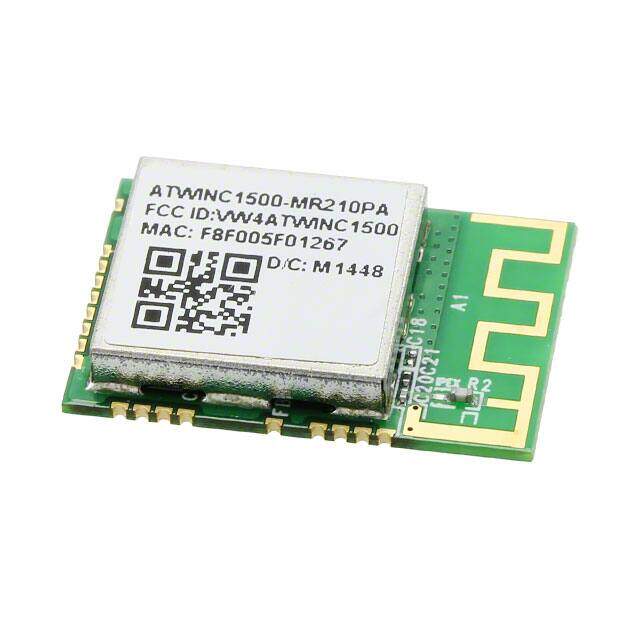

ATWINC1500-MR210PA
RoHS
RoHS compliant
RoHS compliantPackage 28-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
ATMEL ATWINC1500-MR210PA RF TRANSCEIVER MODULE, 2.484GHZ, 19DBM
PDF
/
Buying Options
Total Price: USD $22.12
Unit Price: USD $22.1198
≥1 USD $22.1198
≥10 USD $18.14975
≥100 USD $17.5826
≥500 USD $17.01545
≥1000 USD $16.4483
Inventory: 2484
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-SMD Module
Weight 117.310327mg
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2015
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
Additional Feature SEATED HGT-NOM
Technology CMOS
Voltage - Supply 2.7V~3.6V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Supply Voltage 3.3V
Terminal Pitch 1.016mm
Frequency 2.4GHz
Base Part Number ATWINC1500
Interface I2C, SDIO, SPI, UART
Memory Size 4MB Flash 128kB ROM 64kB RAM
Number of I/O 8
RAM Size 64kB
Memory Type FLASH
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Data Rate 72.2Mbps
Data Bus Width 32b
Protocol 802.11b/g/n
Power - Output 19dBm
RF Family/Standard WiFi
Antenna Type Integrated, Trace
Serial Interfaces I2C, SPI, UART
Current - Receiving 29mA~68mA
Current - Transmitting 29mA~230mA
Modulation 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Sensitivity (dBm) -98 dBm
Firmware Version 19.4.4
Dimensions
Height 900μm
Length 5mm
Width 5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
