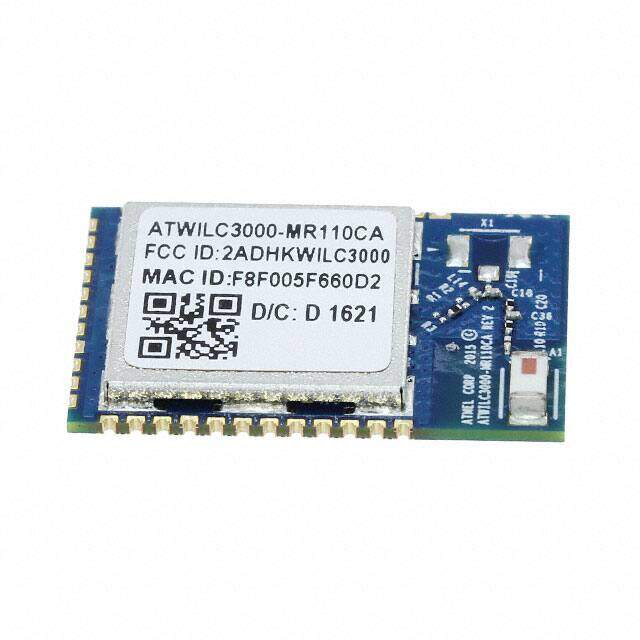

ATWILC3000-MR110CA
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH/WIFI CHIP
PDF
/
Buying Options
Total Price: USD $10.81
Unit Price: USD $10.8064
≥1 USD $10.8064
≥10 USD $9.889088
Inventory: 10532
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 22.428mm
Height 2.087mm
Technical
Ambient Temperature Range High 150°C
Number of GPIO 10
Sensitivity (dBm) -98 dBm
Max Junction Temperature (Tj) 125°C
Current - Transmitting 230mA
Current - Receiving 68mA
Serial Interfaces I2C, SPI, UART
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth, WiFi
Power - Output 19dBm
Protocol 802.11b/g/n, Bluetooth v4.0
Data Rate 65Mbps
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Interface I2C, SPI, UART
Number of Channels 1
Operating Supply Voltage 3.6V
JESD-30 Code R-XXMA-N36
Base Part Number ATWILC3000
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Supply Voltage 3.6V
Peak Reflow Temperature (Cel) 250
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 3.3V
Technology CMOS
Additional Feature SEATED HGT-CALCULATED
Number of Terminations 36
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Manufacturer Package Identifier ATWILC3000-MR110CA
Number of Pins 48
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
