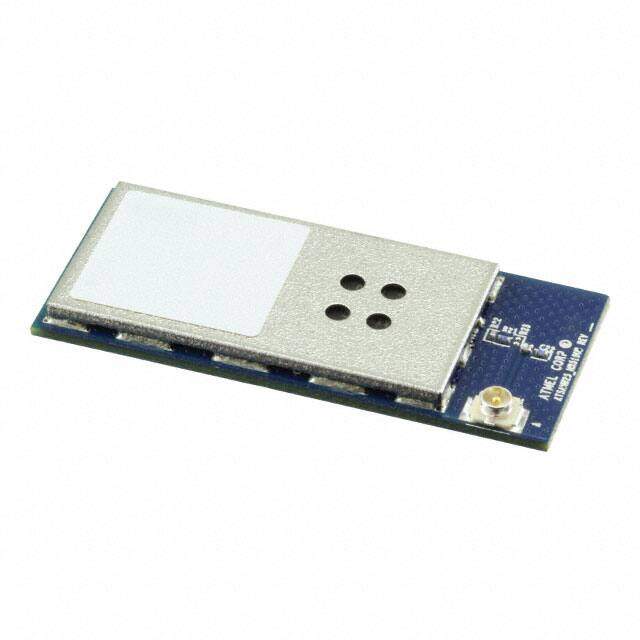

ATSAMW25H18-MR510UB
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
Modules 802.11 2400MHz 72000Kbps 51-Pin
PDF
/
Inventory: 6972
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 14.908mm
Length 33.864mm
Height Seated (Max) 2.138mm
Technical
Firmware Version 19.4.4
Sensitivity (dBm) -95.5 dBm
Serial Interfaces SPI, UART
Antenna Type Antenna Not Included, U.FL
RF Family/Standard WiFi
Power - Output 17dBm
Telecom IC Type TELECOM CIRCUIT
Protocol 802.11b/g/n
Utilized IC / Part ATWINC1500
Data Rate 65Mbps
Memory Size 256kB Flash 32kB SRAM
Interface SPI, UART
Base Part Number ATSAMW25
Frequency 2.4GHz
Terminal Pitch 1.2mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 2.7V~4.2V
Number of Terminations 51
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series Xplained Pro
Published 2015
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 51
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
