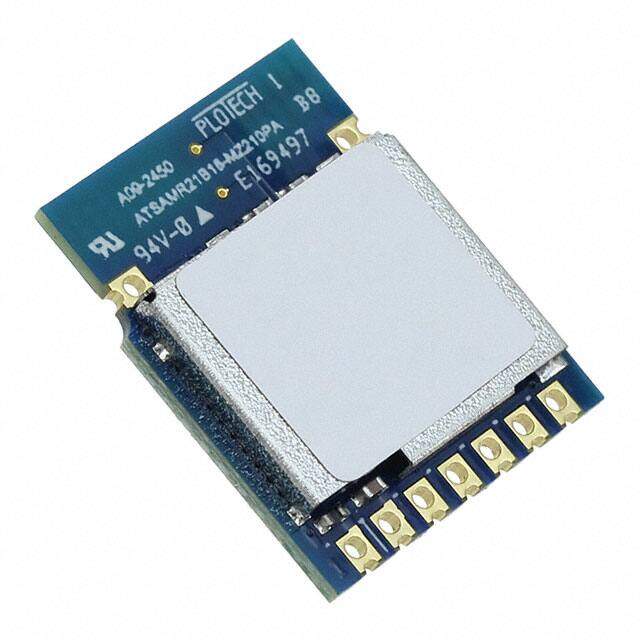

ATSAMR21B18-MZ210PA
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD 802.15.4 TRACE ANT
PDF
/
Buying Options
Total Price: USD $12.9
Unit Price: USD $12.9008
≥1 USD $12.9008
≥10 USD $11.7832
≥100 USD $11.781
Inventory: 343
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 16.3mm
Length 19.7mm
Technical
Current - Transmitting 13.8mA
Current - Receiving 11.8mA
Serial Interfaces SPI, UART
Antenna Type Integrated, Trace
RF Family/Standard 802.15.4
Power - Output -1dBm
Protocol Zigbee?
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Memory Size 256kB Flash
Interface SPI, UART
JESD-30 Code R-XSMA-N7
Frequency 2.4GHz
Terminal Pitch 2mm
Terminal Form NO LEAD
Terminal Position SINGLE
Voltage - Supply 2.7V~3.6V
Technology CMOS
Number of Terminations 7
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Published 2015
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Manufacturer Package Identifier ATSAMR21B18-MZ210PA
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
