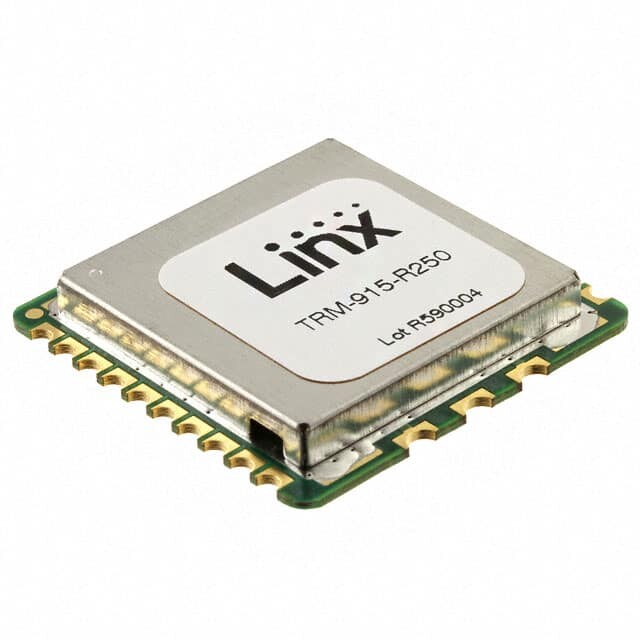

TRM-915-R250
RoHS
/
Package 26-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF Modules 900 MHz Wireless Module FHSS 250 mW
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 26-SMD Module
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2013
Series 250
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Power Rating 250mW
Voltage - Supply 2.7V~3.6V
Frequency 915MHz
Max Output Current 190mA
Operating Supply Voltage 3.6V
Data Rate 153.6kbps
Power - Output 23.5dBm
RF Family/Standard General ISM < 1GHz
Antenna Type Antenna Not Included
Serial Interfaces UART
Current - Receiving 25mA
Current - Transmitting 54mA~190mA
Modulation FHSS, FSK
Sensitivity (dBm) -105 dBm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
