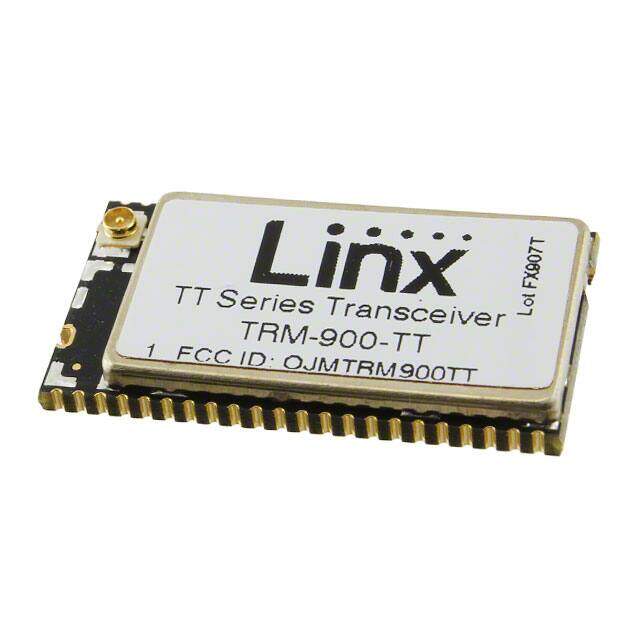

TRM-900-TT
RoHS
/
Package 44-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF Transceiver TT Series 900MHz Remte Cntrl Transcvr
PDF
/
Inventory: 7715
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 44-SMD Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2014
Series TT
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Supply 2.7V~5.5V
Frequency 900MHz
Interface Serial, UART
Data Rate 57.6 kbps
Protocol Proprietary
Power - Output 12.5dBm Max
RF Family/Standard General ISM < 1GHz
Antenna Type Castellation, U.FL/MHF
Max Supply Voltage (DC) 5.5V
Serial Interfaces Parallel
Current - Receiving 19mA
Min Supply Voltage (DC) 2.5V
Current - Transmitting 15.2mA~33.9mA
Modulation FHSS, FSK
Sensitivity (dBm) -111 dBm
Compliance
RoHS Status RoHS Compliant
