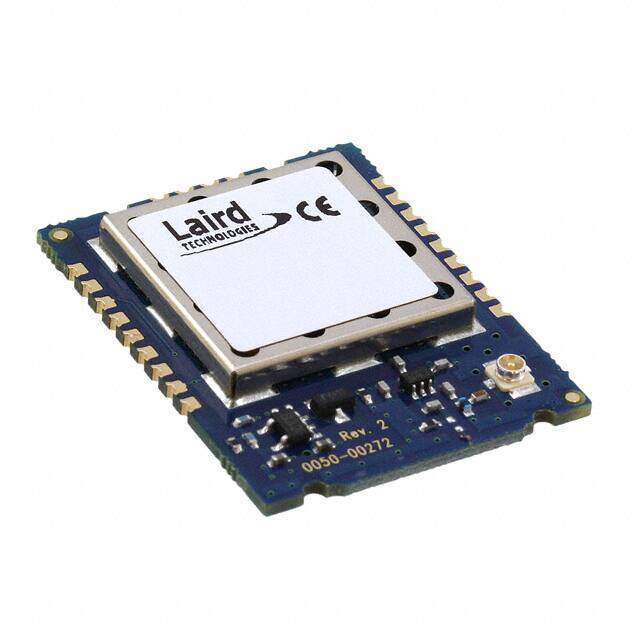

RM024-S50-C-01
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF Modules 2.4GHz Transceiver SMT 50mW u.FL
PDF
/
Inventory: 1411
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 22
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2012
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 2.3V~3.6V
Frequency 2.4GHz
Interface UART
Max Supply Voltage 3.6V
Min Supply Voltage 2.3V
Data Rate 500kbps
Protocol RAMP
Max Frequency 2.4835GHz
Power - Output 18dBm
RF Family/Standard General ISM > 1GHZ
Antenna Type Antenna Not Included, U.FL
Sensitivity -95dBm
Serial Interfaces UART
Current - Receiving 9.5mA~36mA
Current - Transmitting 40mA~166mA
Modulation FHSS, MSK
Sensitivity (dBm) -95 dBm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
