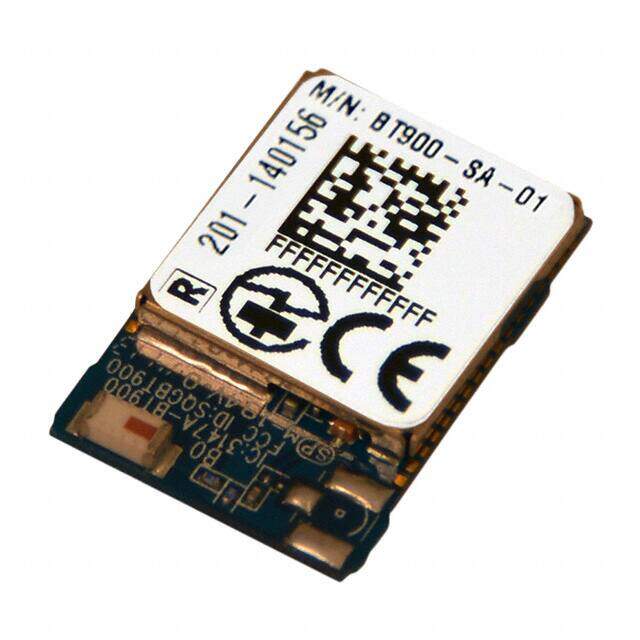

BT900-SA
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Buying Options
Total Price: USD $52.9
Unit Price: USD $52.901993
≥1 USD $52.901993
≥200 USD $21.108806
≥500 USD $20.403779
≥1000 USD $20.054548
Inventory: 1533
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2014
Series BT900
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 47
HTS Code 8542.39.00.01
Voltage - Supply 1.8V~3.6V
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X47
Interface I2C, SPI, UART
Data Rate 3Mbps
Utilized IC / Part CSR8811
Protocol Bluetooth v4.0 Dual Mode
Telecom IC Type TELECOM CIRCUIT
Power - Output 8dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Chip
Serial Interfaces I2C, SPI, UART
Current - Receiving 85mA
Sensitivity (dBm) -90 dBm
Dimensions
Height Seated (Max) 2.4mm
Length 19mm
Width 12.5mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
