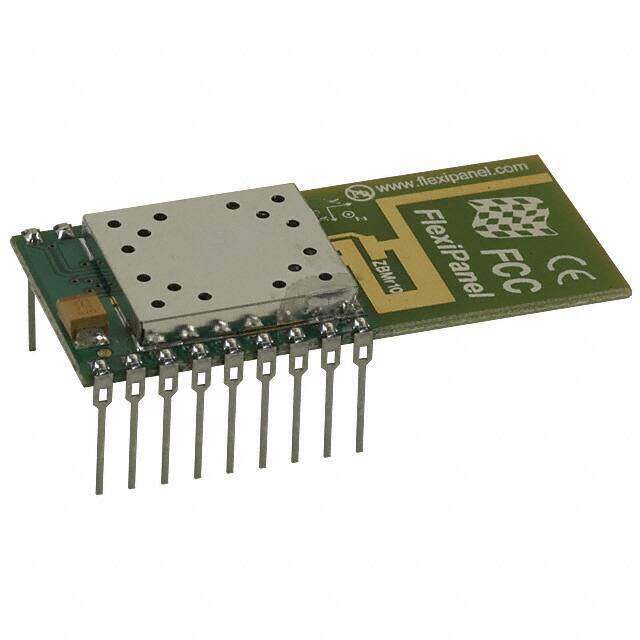

EASYBEE-DIL image
Favorite
EASYBEE-DIL image
Favorite

EASYBEE-DIL

Flexipanel
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MOD 802.15.4 TRACE ANT
PDF
/
Buying Options
Total Price: USD $26.91
Unit Price: USD $26.9104
≥1 USD $26.9104
≥10 USD $26.38592
≥100 USD $25.858624
Inventory: 134
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 20mm
Length 26mm

Technical

Modulation DSSS, O-QPSK
Current - Transmitting 18mA
Current - Receiving 20mA
Serial Interfaces SPI
Antenna Type Integrated, Trace
RF Family/Standard 802.15.4
Power - Output 0dBm
Protocol Zigbee?
Utilized IC / Part MG2470B
Data Rate 250kbps
Interface SPI
Number of Channels 16
Operating Supply Voltage 3.6V
Frequency 2.4GHz
Voltage - Supply 2.1V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Published 2007
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 18
Package / Case Module
Mounting Type Through Hole
Mount Through Hole
