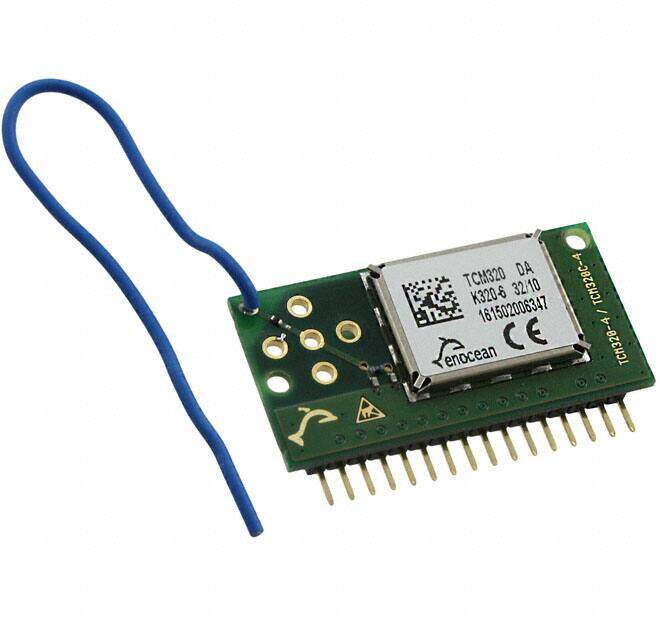

TCM320
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE ISM<1GHZ WHIP ANT
PDF
/
Buying Options
Total Price: USD $23.77
Unit Price: USD $23.7688
≥1 USD $23.7688
≥10 USD $22.616
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 18mm
Length 36.5mm
Height 5.5mm
Technical
Sensitivity (dBm) -98 dBm
Modulation ASK
Current - Transmitting 24mA
Current - Receiving 33mA
Sensitivity -96dBm
Antenna Type Integrated, Whip
RF Family/Standard General ISM < 1GHz
Power - Output 5.2dBm
Max Frequency 868.3MHz
Data Rate 125kbps
Nominal Supply Current 24mA
Memory Size 32kB Flash 2kB SRAM
Min Supply Voltage 2.6V
Max Supply Voltage 3.3V
Frequency 868MHz
Voltage - Supply 2.6V~3.3V
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Package / Case Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
