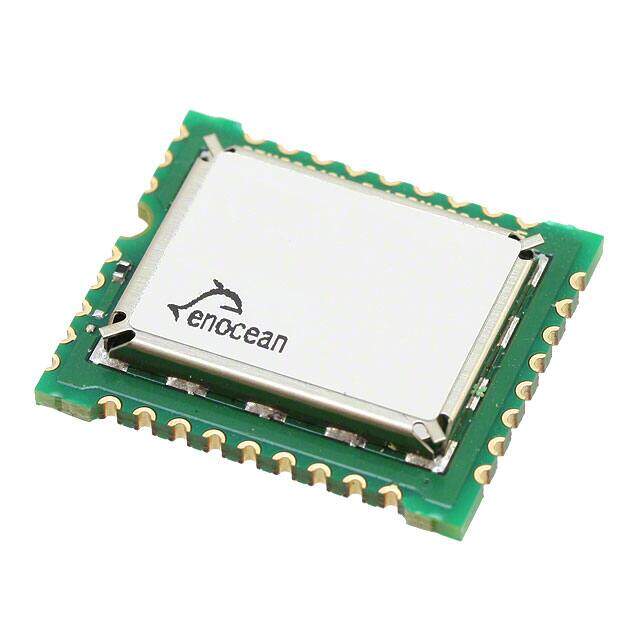

TCM300C
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE ISM<1GHZ
PDF
/
Buying Options
Total Price: USD $67.12
Unit Price: USD $67.12035
≥1 USD $67.12035
≥10 USD $55.07245
≥100 USD $53.352
≥500 USD $51.6306
≥1000 USD $49.91015
Inventory: 1165
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -25°C~85°C
Packaging Cut Tape (CT)
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Voltage - Supply 2.6V~4.5V
Frequency 315MHz
Max Supply Voltage 4.5V
Min Supply Voltage 2.6V
Memory Size 32kB Flash 2kB SRAM
Nominal Supply Current 24mA
Data Rate 125kbps
Max Frequency 315MHz
Power - Output 9.5dBm
RF Family/Standard General ISM < 1GHz
Antenna Type Antenna Not Included
Sensitivity -98dBm
Current - Receiving 33mA
Current - Transmitting 24mA
Modulation ASK
Sensitivity (dBm) -98 dBm
Dimensions
Height 3.1mm
Length 22mm
Width 19mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
