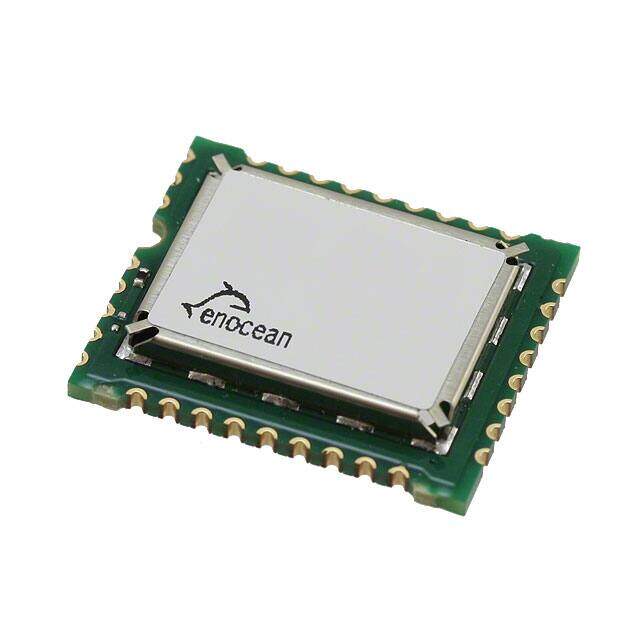

STM300
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE ISM<1GHZ
PDF
/
Buying Options
Total Price: USD $66.67
Unit Price: USD $66.665123
≥1 USD $66.665123
≥250 USD $26.600667
≥500 USD $25.711834
≥1000 USD $25.272012
Inventory: 8871
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 19mm
Length 22mm
Height 3.1mm
Technical
Sensitivity (dBm) -98 dBm
Modulation ASK
Current - Transmitting 24mA
Current - Receiving 33mA
Sensitivity -98dBm
Antenna Type Antenna Not Included
RF Family/Standard General ISM < 1GHz
Power - Output 7dbm
Data Rate 125kbps
Nominal Supply Current 24mA
Memory Size 32kB Flash 2kB SRAM
Min Supply Voltage 2.6V
Max Supply Voltage 4.5V
Frequency 868MHz
Voltage - Supply 2.1V~4.5V
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Discontinued
Series Scavenger
Packaging Cut Tape (CT)
Operating Temperature -25°C~85°C
Physical
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
