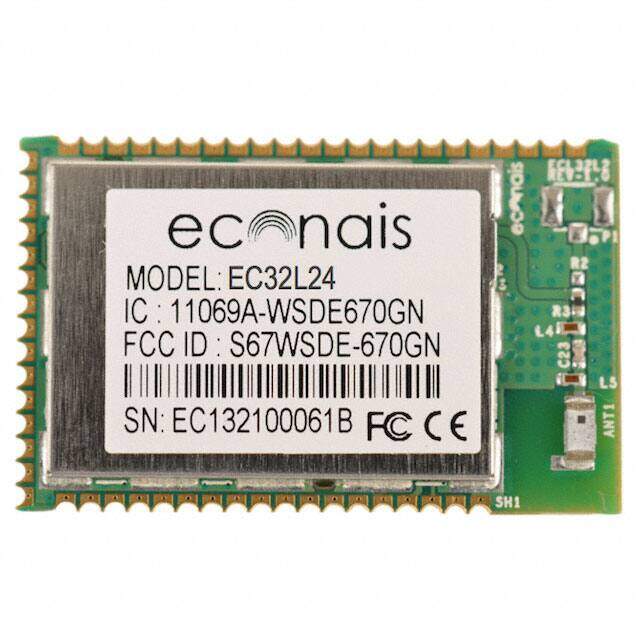

EC32L24
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE WIFI CHIP + MHF
PDF
/
Inventory: 2460
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Sensitivity (dBm) -94 dBm
Modulation 16QAM, 64QAM, BPSK, CCK, DPSK, QDPSK, QPSK, OFDM
Current - Transmitting 7.2mA
Current - Receiving 7.1mA
Serial Interfaces I2C, I2S, JTAG, SPI, USART, USB
Sensitivity -94dBm
Antenna Type Integrated, Chip + MHF
RF Family/Standard WiFi
Power - Output 18dBm
Protocol 802.11b/g/n
Data Rate 72.2Mbps
Memory Size 400kB Flash 62kB RAM
Interface I2C, SPI, USART, USB
Frequency 2.4GHz
Voltage - Supply 3.3V
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Obsolete
Series WiSmart?
Published 2014
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
