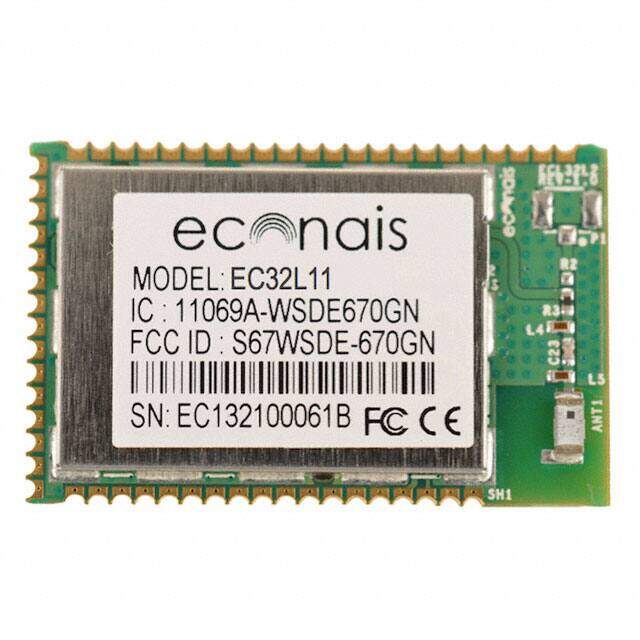

EC32L11
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE WIFI CHIP + MHF
PDF
/
Inventory: 8734
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2014
Series WiSmart?
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Voltage - Supply 3.3V
Frequency 2.4GHz
Interface I2C, SPI, USART, USB
Memory Size 100kB Flash 25kB RAM
Data Rate 72.2Mbps
Protocol 802.11b/g/n
Power - Output 18dBm
RF Family/Standard WiFi
Antenna Type Integrated, Chip + MHF
Sensitivity -94dBm
Serial Interfaces I2C, I2S, JTAG, SPI, USART, USB
Current - Receiving 6.8mA
Current - Transmitting 7.1mA
Modulation 16QAM, 64QAM, BPSK, CCK, DPSK, QDPSK, QPSK, OFDM
Sensitivity (dBm) -94 dBm
Compliance
RoHS Status RoHS Compliant
