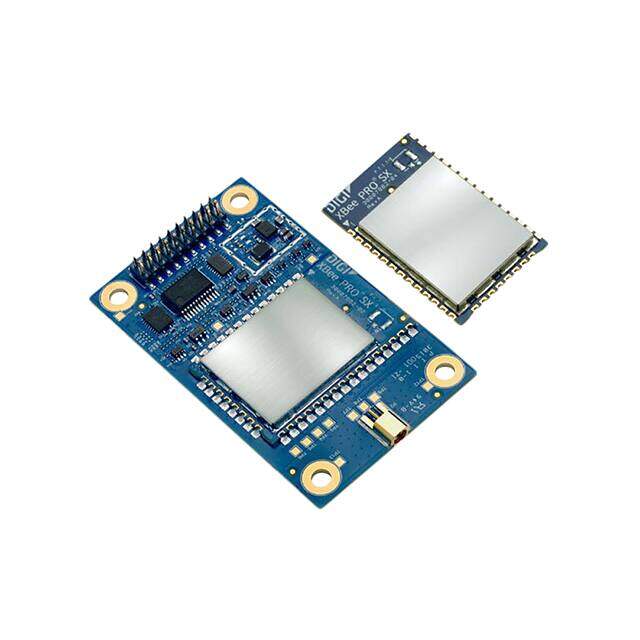

XTP9B-DPM-721
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
XTEND VB AND XBEE XTC MODULES
PDF
/
Buying Options
Total Price: USD $242.68
Unit Price: USD $242.6776
≥1 USD $242.6776
Inventory: 130
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Modulation FHSS, FSK
Current - Transmitting 710mA
Current - Receiving 40mA
Serial Interfaces UART
Sensitivity -110dBm
Antenna Type Antenna Not Included, MMCX
RF Family/Standard General ISM < 1GHz
Power - Output 30dBm
Data Rate 125kbps
Frequency 902MHz~928MHz
Voltage - Supply 2.8V~5.5V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2016
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 26 Weeks
