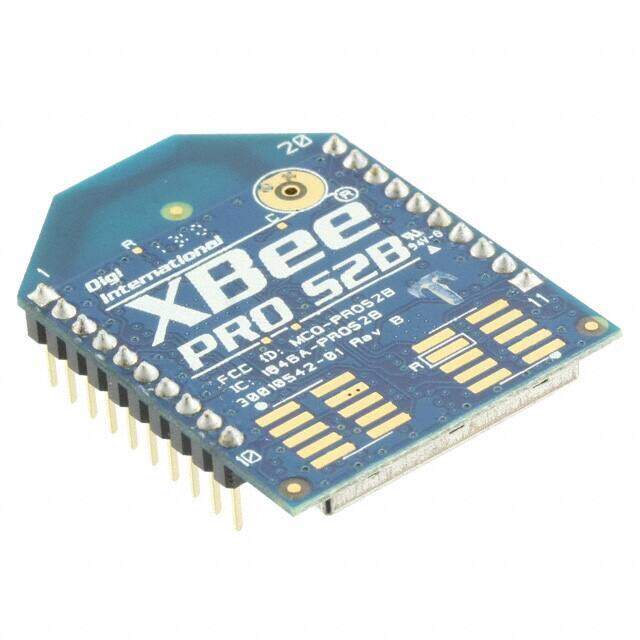

XBP24BZ7PIT-004

Digi
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MOD 802.15.4 TRACE ANT
PDF
/
Inventory: 3304
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Technical

Sensitivity (dBm) -102 dBm
Current - Transmitting 205mA~220mA
Current - Receiving 47mA~62mA
Serial Interfaces SPI, UART
Antenna Type Integrated, Trace
RF Family/Standard 802.15.4
Power - Output 18dBm
Protocol Zigbee?
Utilized IC / Part EM357
Data Rate 250kbps
Interface ADC, I2C, PWM, SPI, UART
Operating Supply Voltage 3.6V
Frequency 2.4GHz
Voltage - Supply 2.7V~3.6V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series XBee-Pro? ZB S2B
Published 2006
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Package / Case Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 9 Weeks
