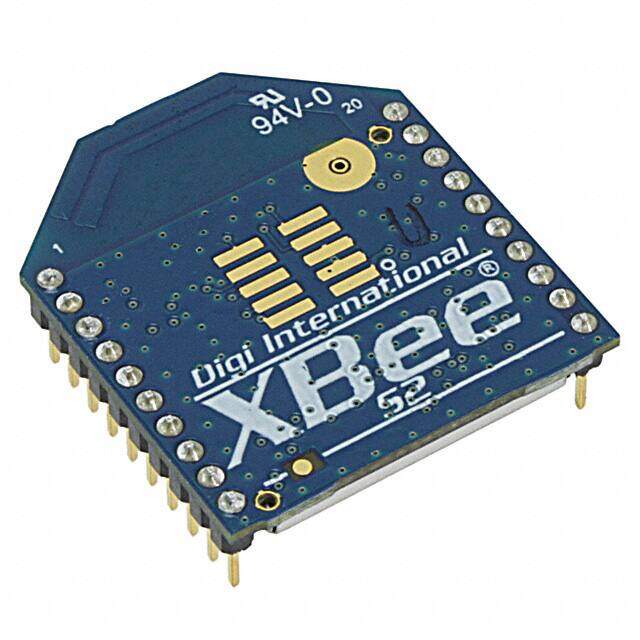

XB24-Z7PIT-004
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
Zigbee / 802.15.4 Modules XBee ZB w/PCB Ant AT Router F/W
PDF
/
Inventory: 5513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 27.61mm
Length 24.38mm
Height 2.79mm
Technical
Sensitivity (dBm) -96 dBm
Modulation DSSS
Current - Transmitting 35mA~45mA
Current - Receiving 38mA~40mA
Serial Interfaces UART
Antenna Type Integrated, Trace
RF Family/Standard 802.15.4
Power - Output 1dBm
Protocol Zigbee?
Utilized IC / Part EM250
Data Rate 250kbps
Operating Supply Voltage 3.6V
Frequency 2.4GHz
Voltage - Supply 2.1V~3.6V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series XBee? ZB
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case Module
Mounting Type Through Hole
Mount Through Hole
