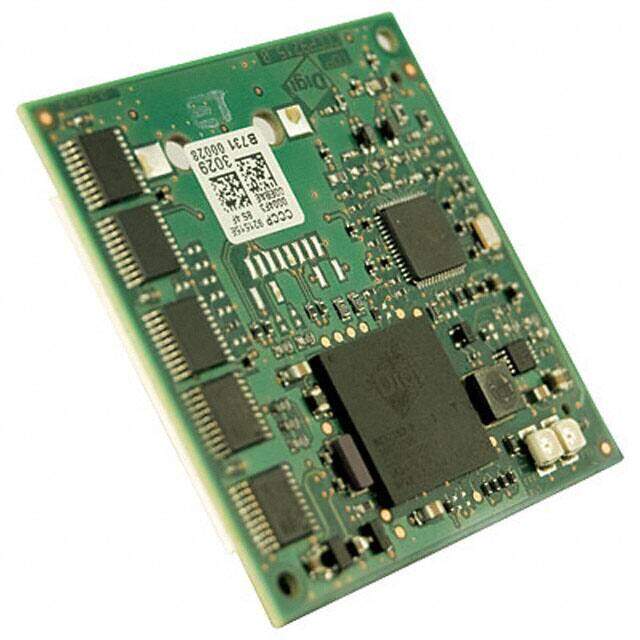

CC-9P-V502-C-B
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
MOD 9P 8MB SDRAM 4MB FLASH 25PAK
PDF
/
Inventory: 3308
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Published 2012
Series ConnectCore? 9P
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket
Frequency 2.4GHz 5GHz
Operating Supply Voltage 3.3V
Interface I2C, SPI, UART
Memory Size 4MB Flash 8MB SDRAM
RAM Size 8MB
Memory Type FLASH, NOR, SDRAM
Data Rate 54Mbps
Utilized IC / Part NS9215
Protocol 802.11a/b/g
Core Architecture ARM
Power Consumption 1.46W
Power - Output 12dBm
RF Family/Standard WiFi
Antenna Type Antenna Not Included, U.FL
Sensitivity -72dBm
Serial Interfaces Ethernet, I2C, SPI, UART
Modulation 16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
