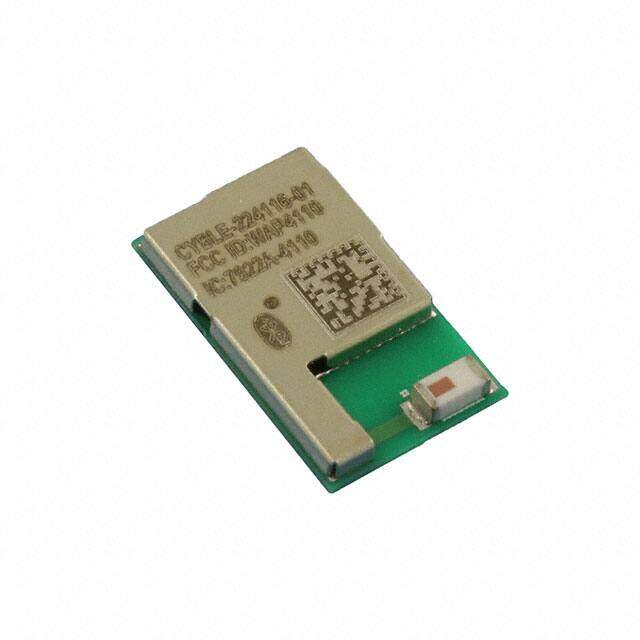

CYBLE-224116-01
RoHS
RoHS compliant
RoHS compliantPackage 32-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
CYBLE-224116-01
PDF
/
Buying Options
Total Price: USD $22.26
Unit Price: USD $22.2552
≥1 USD $22.2552
≥10 USD $20.54184
≥100 USD $18.83024
≥500 USD $17.403584
≥1000 USD $16.547661
Inventory: 3348
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.5mm
Length 15.4mm
Height Seated (Max) 1.9mm
Technical
Current - Transmitting 20mA
Current - Receiving 21.5mA
Serial Interfaces I2C, SPI, UART
Sensitivity -95dBm
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 9.5dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.2
Data Rate 8Mbps
Memory Size 256kB Flash 32kB SRAM
JESD-30 Code R-XXMA-N32
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Terminal Pitch 0.76mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 2V~3.6V
HTS Code 8473.30.11.80
ECCN Code 5A992.B
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series EZ-BLE? PSoC?
Published 2018
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Surface Mount YES
Package / Case 32-SMD Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
